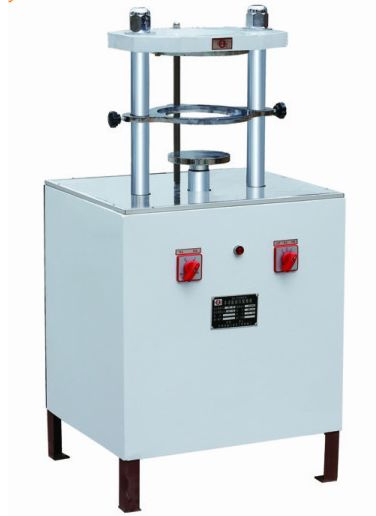

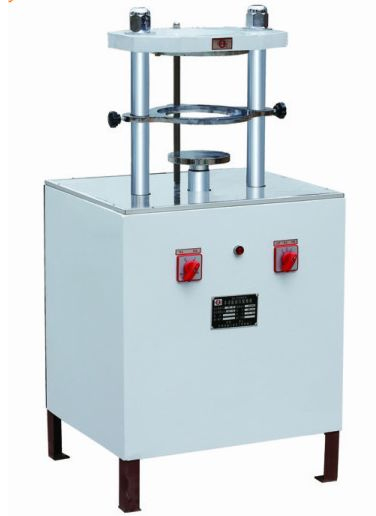

Electric soil and asphalt sample ejector

Model: DTM-200

Description

This sample ejector is used for soil and asphalt sample demolding in laboratory.

Features: Low noise, high power, high efficiency.

Technical specifications

Term Spec.
Rated power 200KN
Demoulding rate 100mm/min
Demoulding Max. height 230mm
Motor power 1.1KW
Power supply AC 380V, 50Hz
Working medium Abrasive resistance hydraulic oil
Overall size 620×590×1050
Weight 300kg
Compression mould ф150×230mm
ф100×180mm
ф50×130mm
Compaction mould ф152×170mm
ф100×127mm
Marshall test mould ф101.6×67mm
