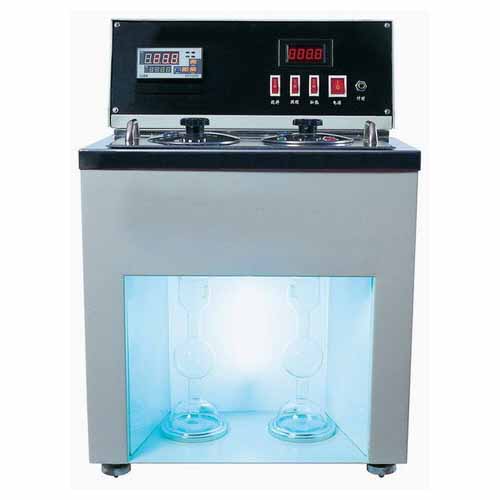

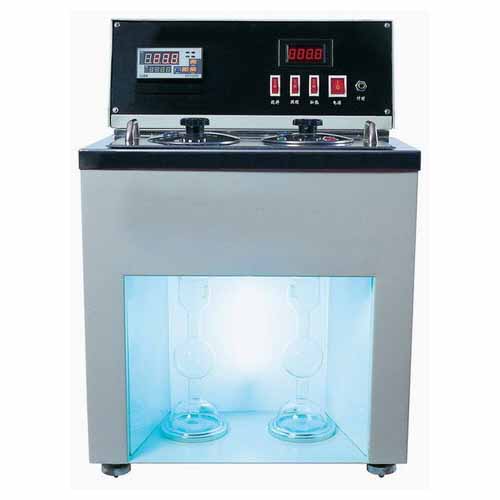

Engler viscometer For bitumen and petroleum

Model: WNE-1B

Standards: ASTM D1665, GB/T266, JTG E20-11 T0622

This Engler can be used to determine the viscosity of bitumen and petroleum products.

Features

Bench type, integration structure, the inner and outer pan are both made of stainless steel, special treatment with inner of inner pan.

Flow time digital display, can perform 2 sample sync test

Digital PID mode temperature controller, easy parameters setup, high temperature accuracy

Technical specifications

Power supply: AC220V±10%, 50Hz

Standard water flow time:  (51±1)s

Measuring temperature: (0~100)℃

Temperature accuracy: ±0.1℃

Engler thermometer: GB514standard

Receiving flask volume: (100±0.2)ml

Inner pan: stainless steel

Time setup: max 999.9s

Timing mode: LED electric timing

Heating power: 700W

Ambient condition: (-10~+40)℃, relative humidity ≤85%

Total power: <800W

Overall dimension: l430mm×w410mm×h620mm



Standard configuration

No. Item Qty
1 Main unit 1set
2 Temperature sensor 1pc
3 Receiving flask (100ml) 2pcs
4 Mercury thermometer  (0~50)℃, graduation 0.1℃ 1pc
5 thermometer (0~100)℃, graduation 1.0℃ 1pc
6 Soft wooden stopper 2pcs
7 Fuse 10A(φ5×20) 2pcs
8 1#Thermometer plugin 2pcs
