Civil engineering & Material Testing equipments

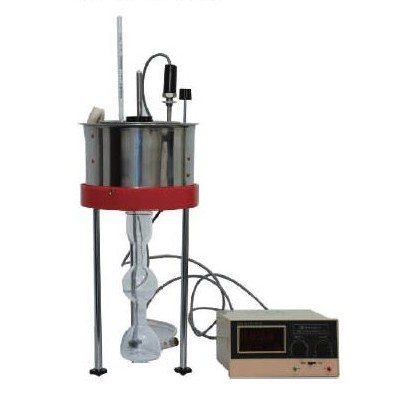

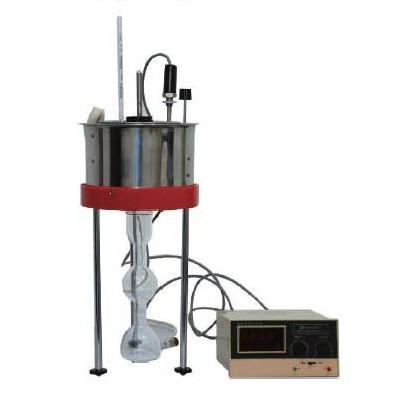

Engler viscometer for ASTM D1655

Model: WNE-1A

Standards: GB/T266, JTG E20-11 T0622, ASTM D1655

This Engler viscometer is used to determine the specific viscosity of tars and their products according to the ASTM D1655 standards, the viscometer is comprised of stirrer and thermometer, bench type, inner and outer pan are totally made of stainless steel. Digital temperature controller, features easy parameters setup and high accuracy.

Technical specifications

Standard water value: (51±1)s

Test temperature: (0~100)℃,±0.2℃

Receiving flask volume: (200±0.2)ml

Internal pan: stainless steel

Heater power: 550w (AC220v, 50hz)

Stop water: 0.01 s accuracy

Overall size:  l200mm×w200mm×h400mm (not include temperature controller)



Standard configuration

No. Item Qty
1 Stirrer 1unit
2 Temperature controller(including 1pc sensor) 1set
3 Receiving flask (200ml) 1pc
4 Engler thermometer  (0~60)℃, graduation 0.5℃ 1pc
5 Engler thermometer  (50~110)℃graduation  0.5℃ 1pc
6 Wooden stopper 1pc
7 Thermometer clamp 1 pc
