Civil engineering & Material Testing equipments

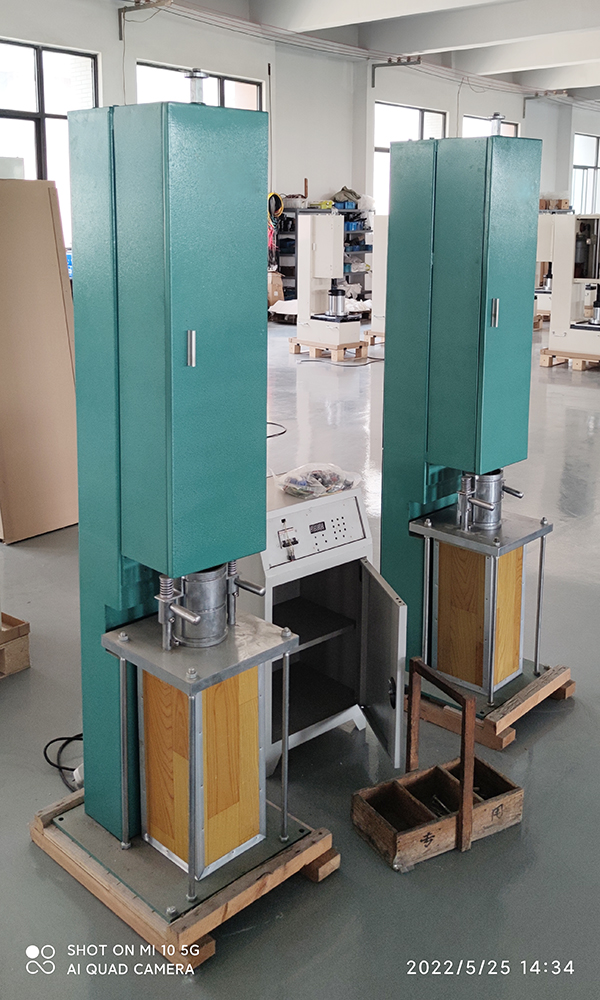

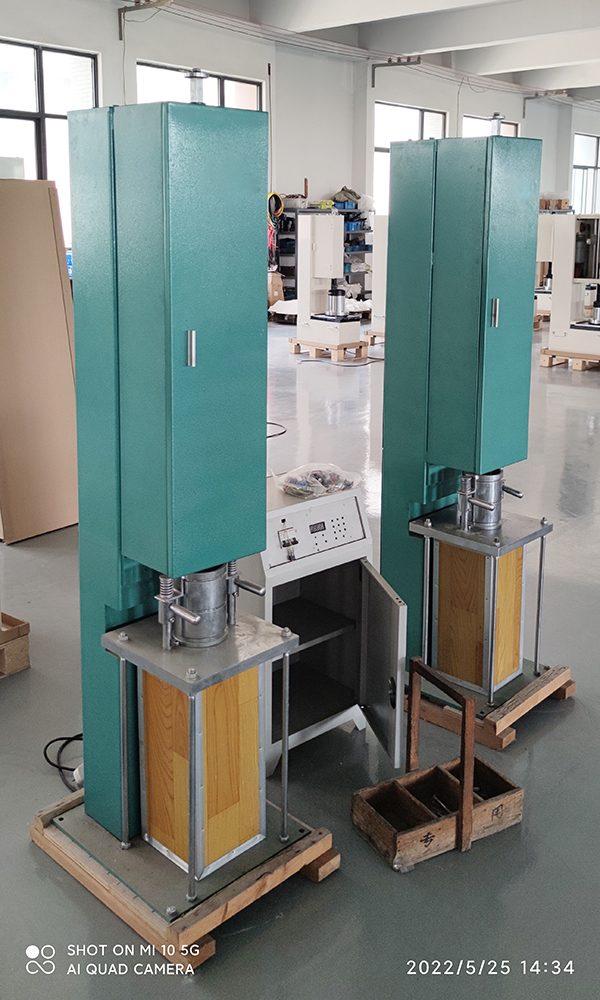

Automatic Marshall Compactor AASHTO T245

Standards: JTG E20-2011, T0702-2011, AASHTO T245

Model: MJ-0702/0702A

Description

It is professional specimen forming machine for Marshall stability test, it’s kind of very common Road engineering laboratory test equipment.

Main features

1. Microprocessor intelligent control

2. Compaction number preset, 0-999times

3. Sturdy and durable, nice appearance

4. Compact structure, easy operation, automatic stop

Technical specifications

Spec. MJ-0702 MJ-0702A
Strike rammer 4536g±9g 4536g±9g , 10210g±10g
Rammer head dia. Φ98.5mm Φ98.5mm
Rammer drop weight 457mm±1.5mm 457mm±1.5mm
Suitable mould size Φ101.6×63.5mm Φ101.6×63.5mm Φ152.4×95.3mm
Compaction speed 60 strike/min 60 strike/min
Compaction times 0-999 free setup 0-999 free setup
Overall size 540×500mm×2000mm 540×500×2000mm
Net weight 150kg 180kg
