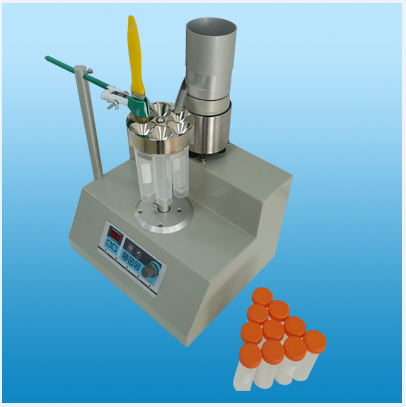

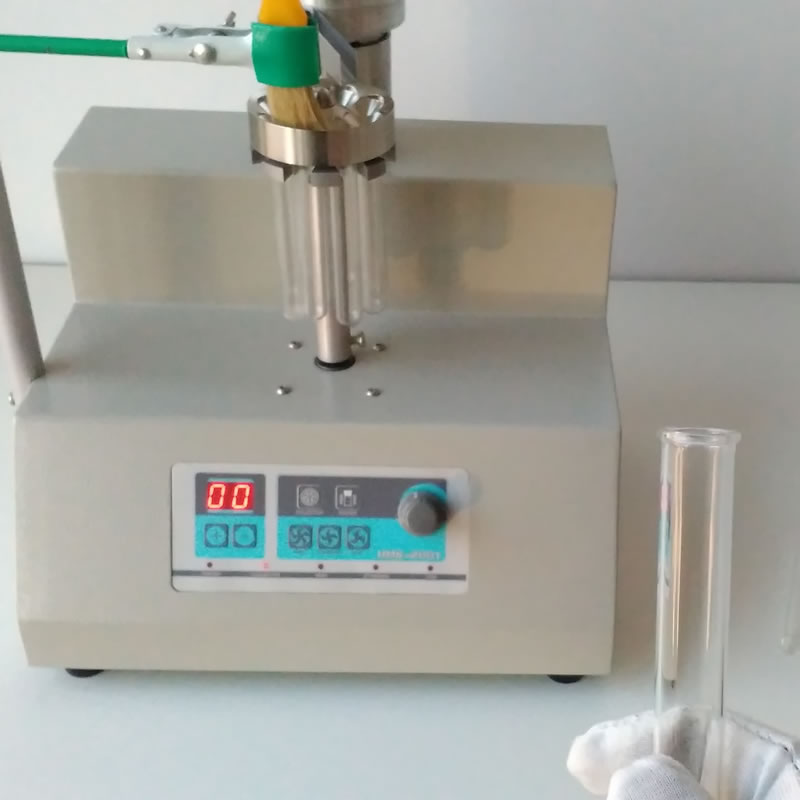

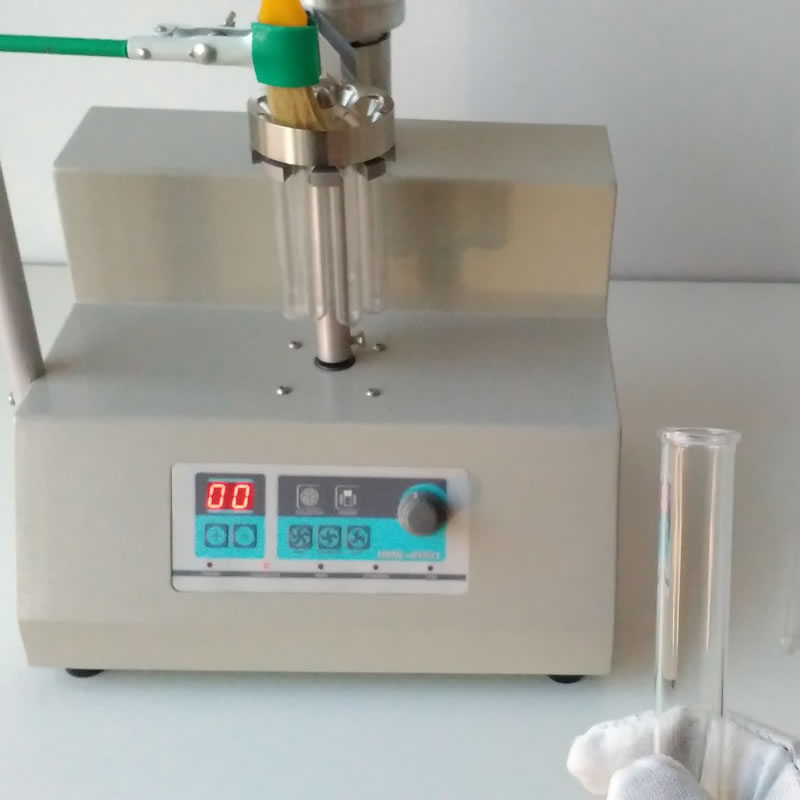

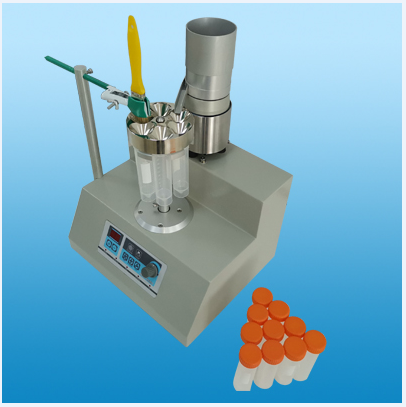

Automatic laboratory sample divider

Model: FY-2001

Introduction

This automatic sample divider is used for division of dry powder sample in laboratory, works in vibration & rotary mode, it can divide the sample into 6, 8, 10 equal part, every part can keep the original characteristics of original sample. The divider is constructed of below parts: control panel, vibration feeder, sample receiver, sample clean device.

Features

  • Automatic sample division
  • Automatic adjustment of the vibration feeder amplitude
  • Automatic adjustment of the sample receiver rotation speed
  • Automatic adjustment of amplitude and rotation speed to reach accurate sample division



Technical specifications

Applications sample division, sample reduction
Field of application agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material bulk materials
Material feed size* ≤ 10 mm
Batch size / feed quantity* ≤ 2500 ml
Rotary speed 0-110rpm adjustable
Number of divisions 10 (can be more, but total batch size is 2500ml and then have to be adapted container volume)
Time setting digital, 1, 3, 5, 10 – 60 min / continuous operation
Container volume  250 ml
Electrical supply data 220 V, 50 Hz, 1-phase
