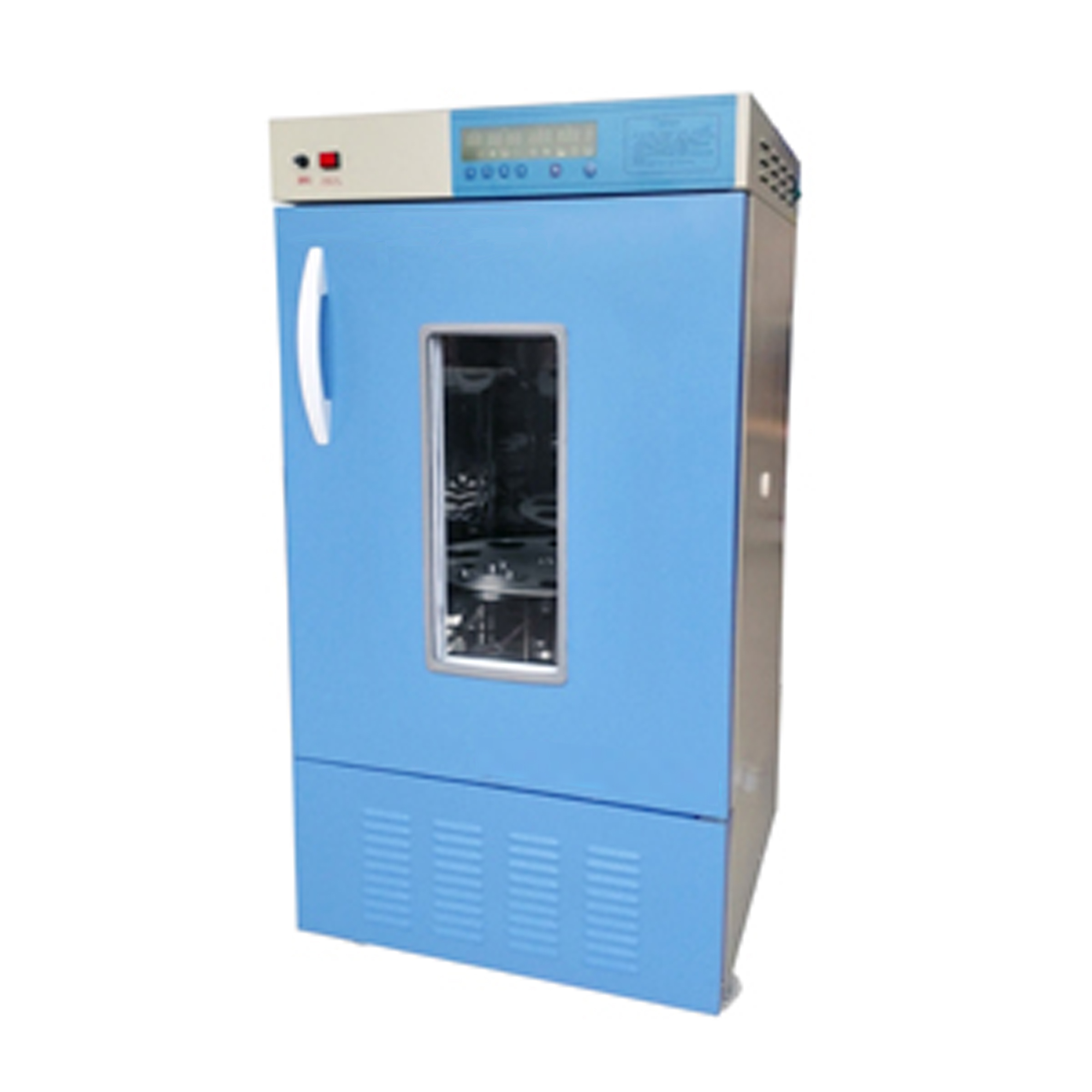

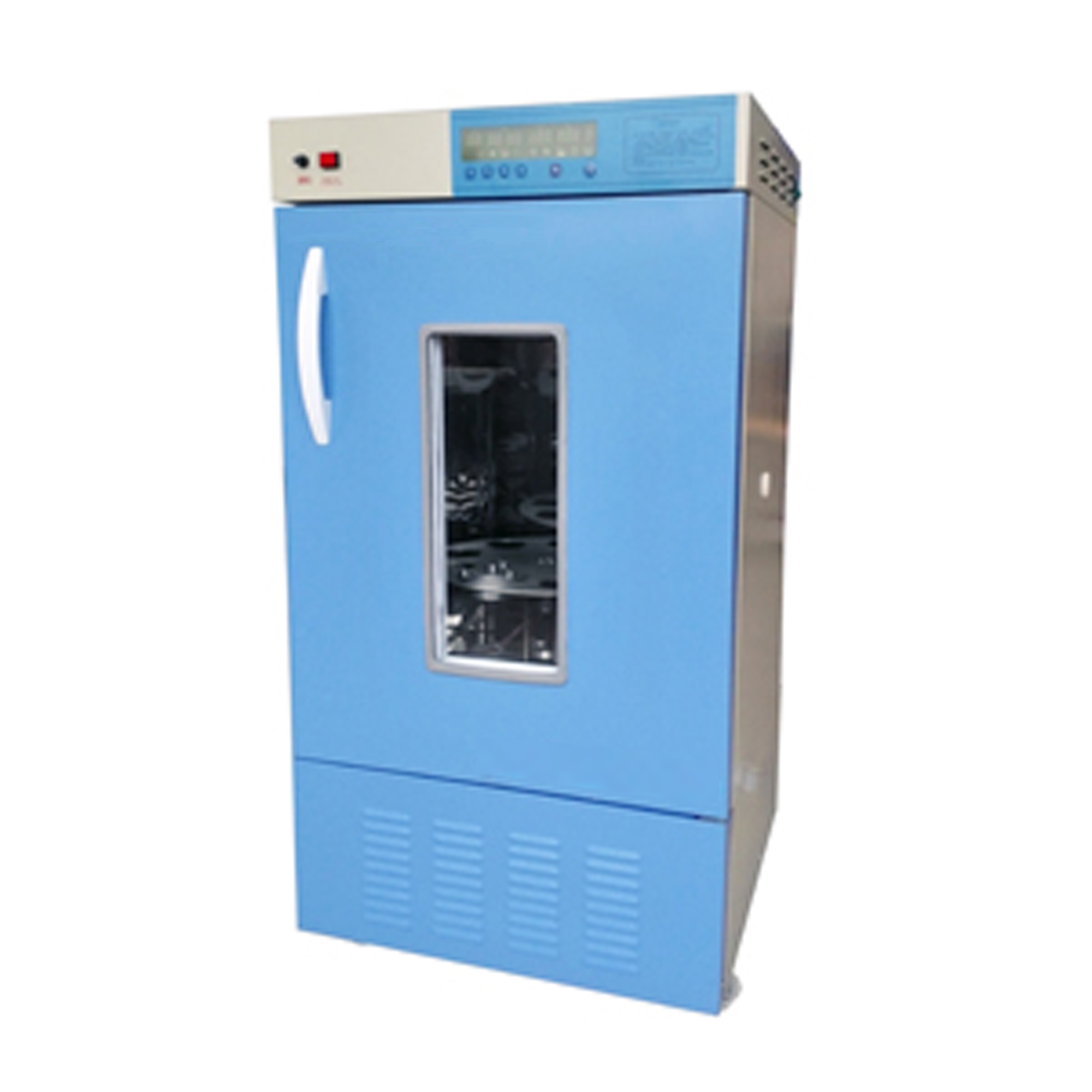

Water Vapor Transmission Rate (WVTR) tester ASTM E96

Model: FZ-96

Test standards

GB/T12704, JIS L1099, BS 7209, ASTM E96, A/B /BW.

This tester is used to test the water vapor transmission rate of fabrics (including Moisturizing type coated fabric), cotton, space cotton.

Technical specifications

Work mode



 MCU control, LCD display, test condition monitoring
Test chamber temperature 20~45 degree C, resolution: 0.1 degree C
Temperature accuracy ±0.5 degree C
Humidity control 40%RH-95%RH, ±2%RH
Humidification capacity 300ml/h
Drying oven control temperature RT-199 Degree C (optional)
Test time 1~999h59min
Circulation air flow rate 0.02-1.5m/s
Vapor transmission area 2827mm2, ASTM Standard 3848mm2
Moisture cup number 6pcs or 9pcs
Power supply AC 220V, 50HZ
