Standards: ASTM D1776

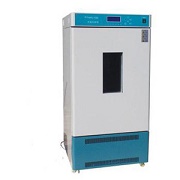

This chamber is used for conditioning and testing of textiles under certain specified temperature and humidity by complies to the ASTM D1776 standard.



Features

Fluoride-free design

LCD display, can preset 30 program temperature & humidity control, repeated movement step by step

Human friendly control panel, easy observation and operation

PID controller guarantee accurate control, up to 100 control period, 30 sections, can set up to 99 hours 59mins

Mirror type stainless steel liner, semi-arc with four corner, detachable shelfs easy for cleaning

30mm view hole at left side

Oscillator can be put inside, built in Fluorescent light for easy observation

Quality ultrasonic humidifier, large volume water tank, Water shortage power cutting function

High quality foreign imported type humidify sensor

Brand compressor and circulation fan and advanced air duct design



Technical specifications

Model	FZ-751B-1	FZ-751B-2	FZ-751B-3
Power supply	AC 220V, 50Hz
Temperature control range	No humidification 0-65 degree C, with humidification 15-50 degree C
Humidity range	45-90%RH, ±2%
Temperature accuracy	0.1 degree C
Humidity fluctuation	±0.5 degree C
Temperature uniformity	±1 degree C
Heating power	300w	500w	800w
Work chamber size(mm)	L500×W350×H500	L500×W400×H730	L500×W500×H950
Overall size(mm)	L630×W570×H1010	L630×W620×H1240	L630×W720×H1460
Net weight	75kg	90kg	100kg
