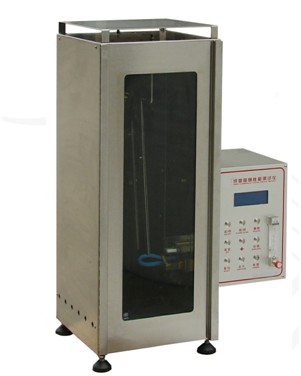

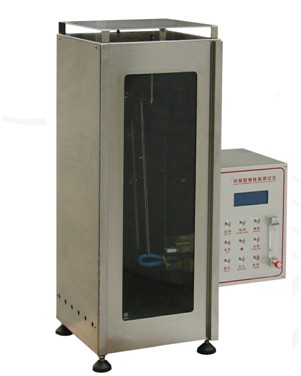

Vertical flammability chamber for textiles and plastics



Model: RS-1210

Standards: ISO1210, ASTMD6413, CFR1615/1616, GB/T5456, GB/T13488, GB/T13489, GB/T2408

This flammability chamber is used to determine the burning behaviour of woven fabrics, knitted fabrics, coated product, laminated products, plastics subjected to vertical fire.

Features

Foreign SUS made

Rotor flow meter to adjust the flame height

Heat proof glass observation door

Foreign made gauges, metal keypress

Foreign made motor and reduction box

quality control test equipments manufacturer and supplier



Technical specifications

Temperature indication range 0~90±1℃
Burning continuous timing range 0~999.9s, resolution 0.1s
Smoldering timing range 0~999.9s, resolution 0.1s
Ignition time 0~999s freely set
Temperature error ±1℃
Flame height 40±2mm
Record test times range 0~30 times
Ignitor tube internal diameter 11mm
Distance between Ignitor top to the sample 17mm, angle: 25 degree
Sample clamper 1set
SUS clamper 4pcs
Weights (54.5g,113.6g,226.8g,340.2g,453.6g)one each
Overall size 525×355×800mm(L×W×H)
Net weight 35Kg
