Standards: ASTM D4781, ASTM D4164, ASTM B 527, ISO 787-11, ISO 3953

This Tap powder density tester is composed of adjustable speed motor, vibration components, microcomputer and micro printer. The amplitude and the number of vibrations can be freely set. During the vibration process, the vibration component rotates at a small angle to ensure the uniformity of the material. With functions of automatic calculation and automatic printing of test results.

The Powder density refers to the mass corresponding to a unit volume of powder. Due to the existence of voids (or pores) between or within the particles in the powder, the density of the powder is usually less than the true density of the corresponding substance. Tapped density refers to the density of the powder contained in the container after being tapped under specified conditions.



Specifications

Model	Powden-100	Powden-100A	Powden-100B
Number of sample measurements	1	2	3
Vibration amplitude	1-15mm	1-15mm	1-15mm
Vibration frequency	0-300 times per min	0-300 times per min	0-300 times per min
Single time vibrations number	0-99999 adjustable	0-99999 adjustable	0-99999 adjustable
Cylinder Specifications	25ml,50ml,100ml,250ml	25ml,50ml,100ml	25ml,50ml,100ml
Repeatability error	±1%	±1%	±1%
Accuracy	±1%	±1%	±1%
Result output	Built-in printer	Built-in printer	Built-in printer

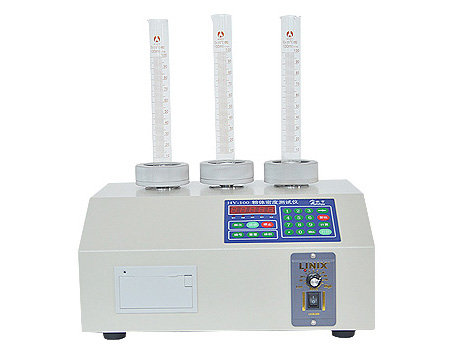

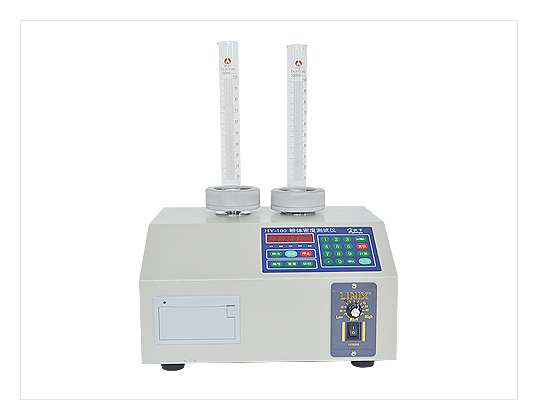

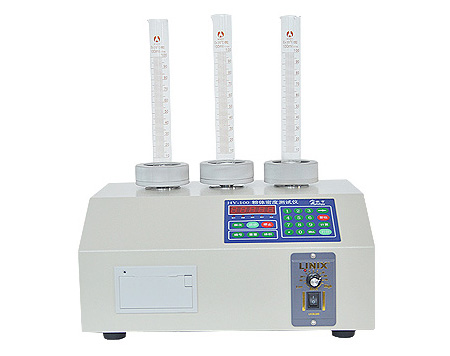

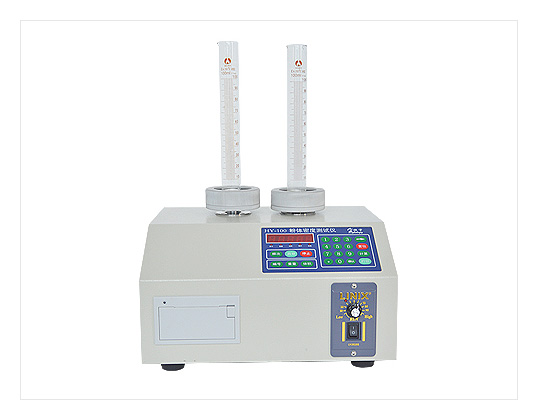

3 station tap density meter                                 2 station tap density meter
