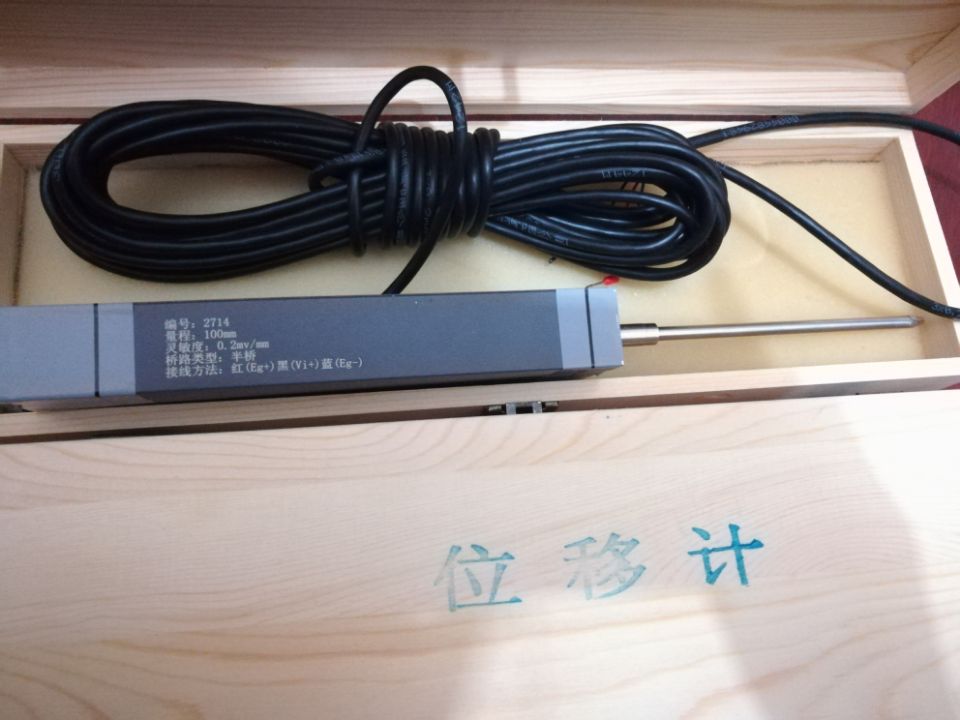

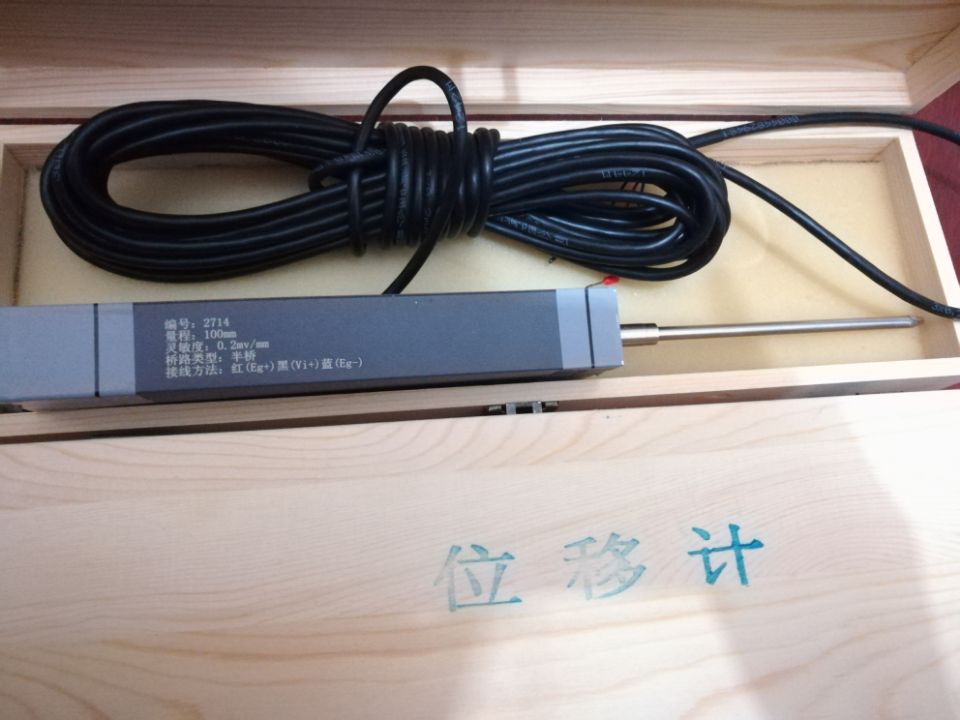

Strain type displacement transducer

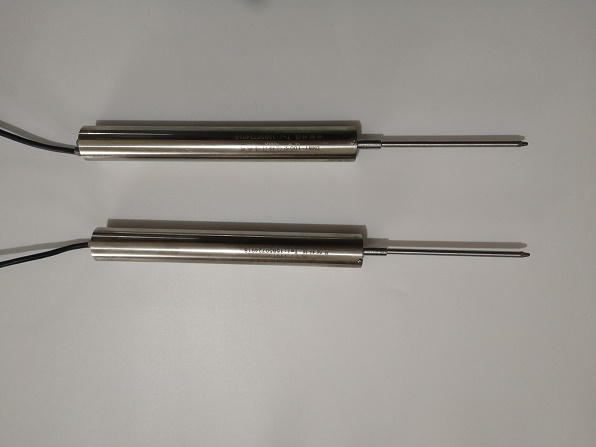

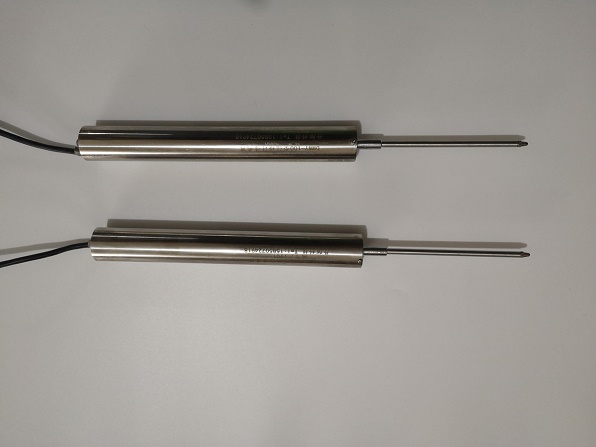

dav

Technical specifications

Index DMWY-5 DMWY-10 DMWY-20 DMWY-30 DMWY-50 DMWY-100 DMWY-200
Measuring range/(mm) 0-5 0-10 0-20 0-30 0-50 0-100 0-200
Full scale output(ue) 3000 4000 6000 6000 6000 8000 8000
Calibration coefficient (mm/ue) 0.00125 0.002 0.0025 0.00375 0.00625 0.0125 0.025
Bridge resistance() 350ohm
Overall size Ø25*70 Ø25*80 Ø25*106 Ø25*136 Ø25*195 Ø25*345 Ø32*445
Net weight 0.6 0.8 1.0 1.5 2.0 3.0 4.5
Measuring reaction force 0.8-1.2 1.0-1.5 1.5-2.0 1.8-2.5 2.0-3.0 3.0-4.0 4.0-5.0
Applications Surface strain or crack width Displacement
Accuracy 0.5%
Temperature range -35-70 degree C
Amplifier sensitivity 2.0
Bridge voltage <=10v
Humidity range 90%RH
Bridge type Full bridge, stainless steel made, temperature compensation
Extended cable length Customized
Dynamic response frequency <50hz
Wire connection way Red: power+, blue: power-; yellow: signal+, black: signal-



Index DMWY-5 DMWY-10 DMWY-20 DMWY-30 DMWY-50 DMWY-100 DMWY-200
Measuring range/(mm) 0-5 0-10 0-20 0-30 0-50 0-100 0-200
Full scale output(ue) 3000 4000 6000 6000 6000 8000 8000
Calibration coefficient (mm/ue) 0.00125 0.002 0.0025 0.00375 0.00625 0.0125 0.025
Bridge resistance() 350ohm
Overall size Ø25*70 Ø25*80 Ø25*106 Ø25*136 Ø25*195 Ø25*345 Ø32*445
Net weight 0.6 0.8 1.0 1.5 2.0 3.0 4.5
Measuring reaction force 0.8-1.2 1.0-1.5 1.5-2.0 1.8-2.5 2.0-3.0 3.0-4.0 4.0-5.0
Applications Surface strain or crack width Displacement
Accuracy 0.5%
Temperature range -35-70 degree C
Amplifier sensitivity 2.0
Bridge voltage <=10v
Humidity range 90%RH
Bridge type Full bridge, stainless steel made, temperature compensation
Extended cable length Customized
Dynamic response frequency <50hz
