Model: RL-71

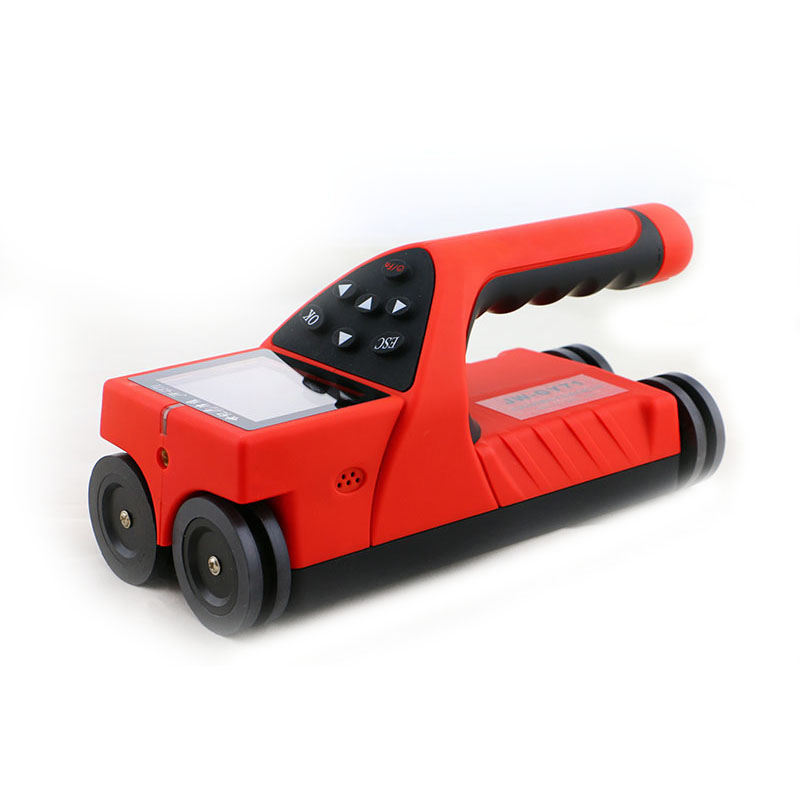

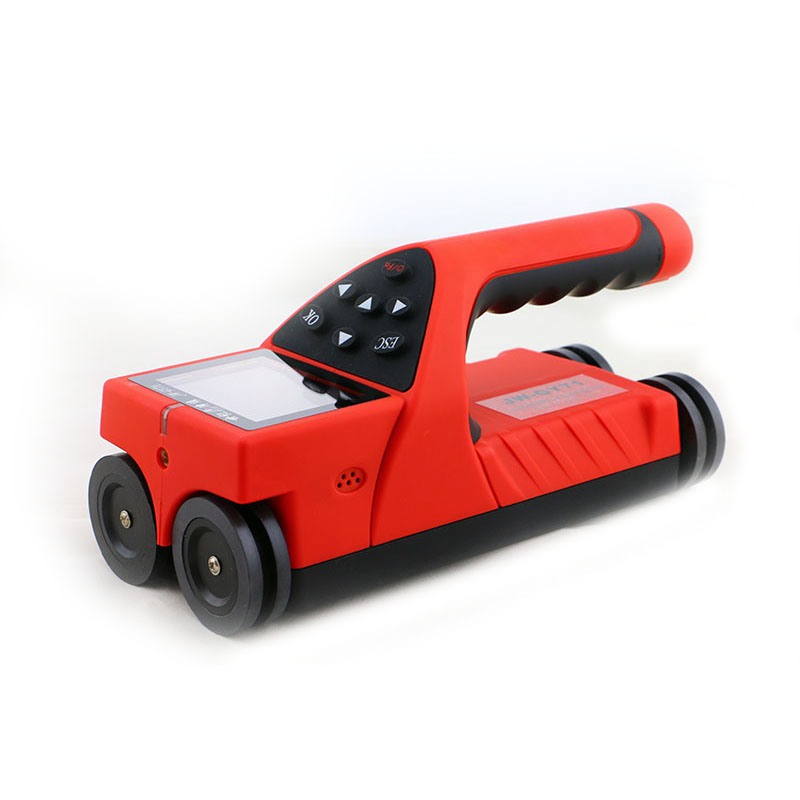

It’s a portable rebar locator, it can detect the rebar location, trend, distribution, protective layer thickness, also it can detect the magnetic body and electrical conductor in the non-magnetic and non-conductive body.

Features

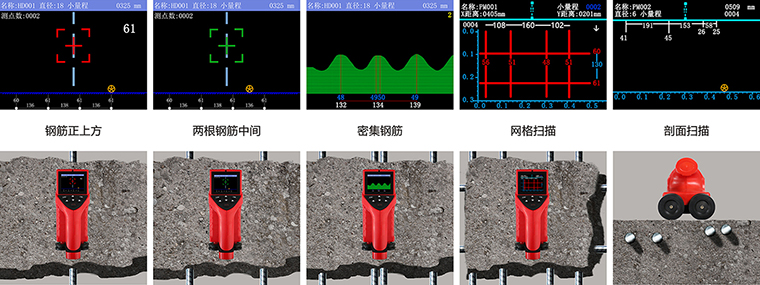

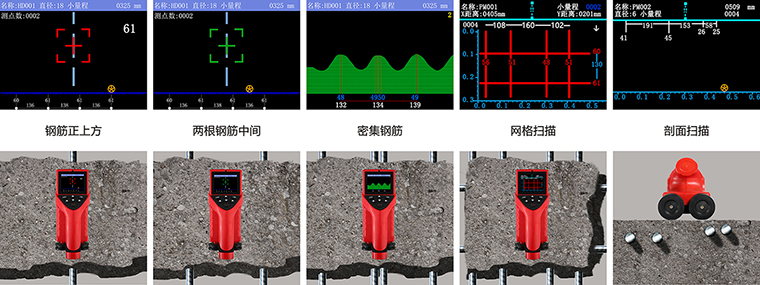

Waveform scan, direct in sight of densely distributed steel bars

Accurate display of concrete protective layer thickness, can indicate the gap of rebars

Grid/section scan, waveform scan can measure up to 30m in length in one scan

With storage/inquiry/delete function, can store up to 12000pcs components or 200000 test point

USB/bluetooth data transmission

PC data management software for data management and report generation(3D imaging function)

8inch high definition color LCD(320×240)

High capacity 18650 lithium battery, 30hours continuous working after full-charge

Integration design, compact, light in weight, English interface

Technical specifications

Rebar diameter range	6mm-50mm
Rebar diameter measure error	≤±1mm
Protective layer thickness measure range	1st range 6-90
	2nd range 7-200
Protective layer thickness measure error	6mm-59mm	7mm-79mm	≤±1mm
	60mm-69mm	80mm-119mm	≤±2mm
	70mm-90mm	120mm-200mm	≤±4mm
Working environment requirements
Ambient temperature	10 ° C ~ 40 ° C
Relative humidity	<90% RH
Power supply	7.4VDC, 2200mAh
