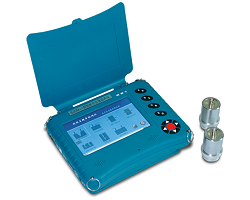

Model: CMCS-10

It’s a multifunctional concrete NDT equipment, it can be used for applications of crack depth detection, impact thickness measuring, strength detection, defects detection, ultrasonic PIT, welling logging.

Features

•  Fast and standard measuring modes,
•  Sound parameter automatic interpretation, automatic real time display waveform, automatic interpretation of sound time and head wave
•  High sensitivity for the weak signal, accurate detection of defect size and scope
•  Automatic ambient temperature detection and test time recording
•  In-situ data analysis function, after test, direct analysis and test results obtained.
•  In-situ data management function, easy data check, storage, delete, analysis
•  Powerful Windows^® based data analysis software, sync transmission to PC through USB
•  Users can perform statistical analysis on test data, generate Word and Excel reports, and print out
•  Built-in various help files and demonstration videos to facilitate the user’s proficiency in instrument operation.
•  Touch screen friendly easy operation
•  Voice and text prompt during whole test process
•  2GB SD storage card can store up to 10,000units test documents.
•  Adopts high efficiency, energy saving rechargeable lithium battery



Technical specifications

Hardware platform	ARM9 embedded, wince5.0 operation system( industry degree)
Display	True color TFT display
Channel	double channel
Receiving sensitivity	≤10μV
Amplifier bandwidth	5Hz~500khz
Amplitude range	0~177db
Ultrasonic sound time testing range	0μs~629000μs
Ultrasonic sound time measuring resolution	0.025μs
Ultrasonic sound time measuring accuracy	≤±0.05μs( 100r/min)
Max sampling length	≤64KB
Sampling rate	40Msps/Channel( sampling interval: 0.05μs~400μs, 14-step adjustable)
Continuous working duration	28hrs
Working temperature	-10℃~＋50℃
Working humidity	≤90%RH
Packing dimension	420*340*130mm
Gross weight	5.5-7KG
