Model:ETTC-10S

Standards

ISO4624, ASTM D4541, ASTM D7234

GB5210-1985-T《 the adhesion test method of coatings-pull off method》

GB16777-2008 《 the testing method of Building waterproof coating》

GB/T5210-2006《 the adhesion test of paint and varnish-pull off method》;

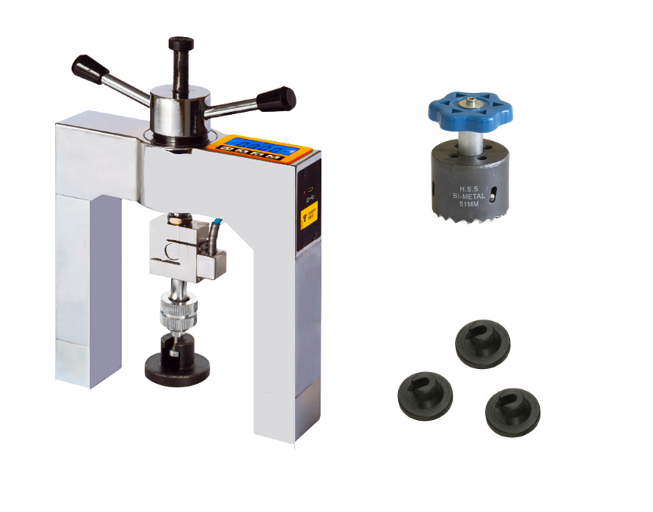

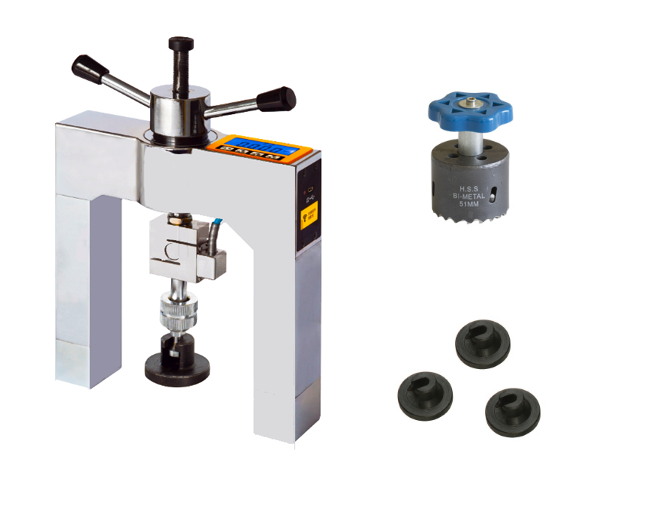

The coating adhesion tester is used to test the coating adhesive strength on construction materials, it adopts uni-body design, the tester comprised of test standard, load cell, handle, screw rod, pressure gauge. Main body made of light alloy material, light in weight, easy operation. it’s a common construction non destructive test equipment.

Features

Unibody design

Peak maintain

Can store up to 500 pcs data

10 segment curve correction

Automatic power off under

Technical specifications

Measuring range	0-10.000KN
Indicating resolution	0.001KN
Measuring unit	KN, Mpa
LCD, peak maintain	Yes
Data storage	500 units
Data correction	10 segment
Power mode	Lithium battery
Pull stroke	65mm
Machine material	Light alloy
Net weight	2.8Kg

Standard accessories

1. Power adapter
2. Spindle 50mm, 10pcs(20mm and 40×40mm optional)
3. Hole drill kit
4. Metal Carrying case
5. Glue
