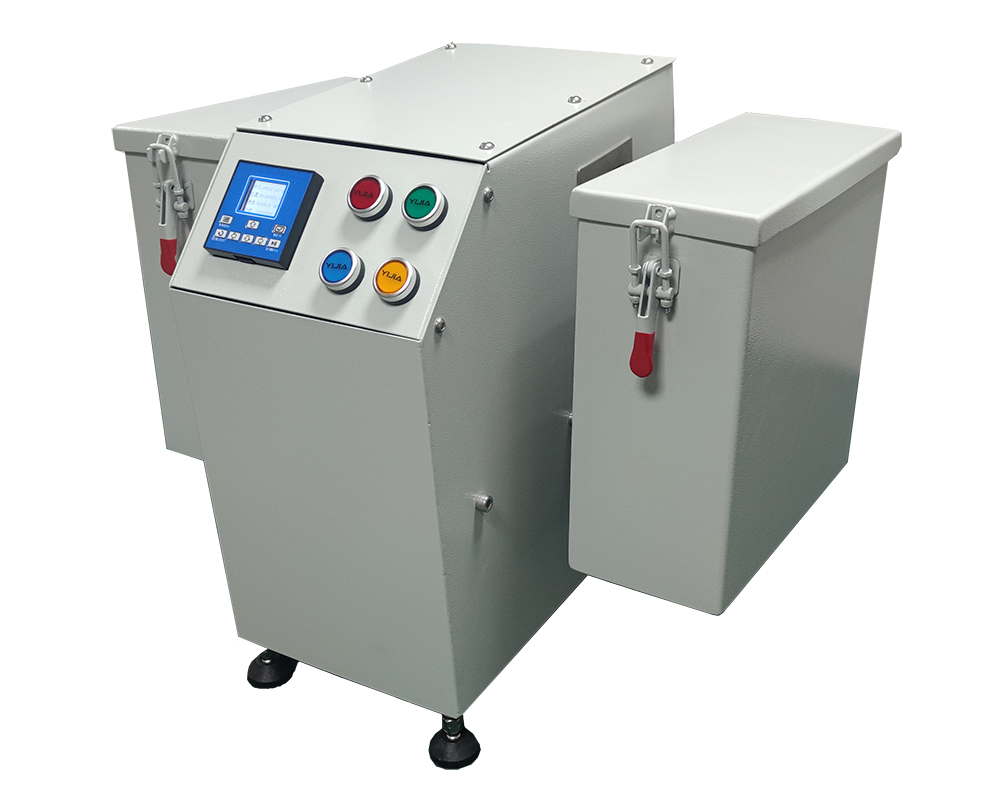

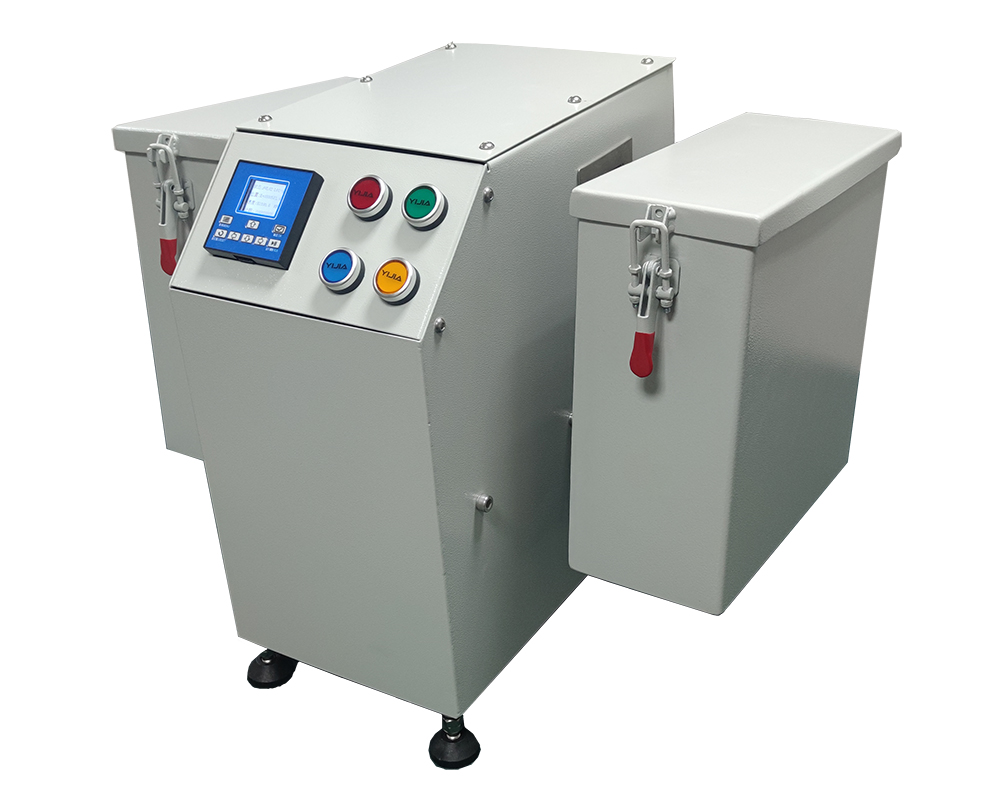

Model: PDI-136E

Standards: ISO 17831-1(BS EN 15210-1:2009)

Description

This tester is specially used test the Pellet Durability Index of feeds, it’s kind professional pellet feed quality control equipment. the high value of the PDI, the better quality of the feeds.

Features

PLC control, LCD real time displays running time, automatic stop

Fully SUS made test box with electrostatic spraying treatment

Step motor sync drive two rotation box, guarantee consistent rotation speed and direction.

Flange connection with test box, more durable and reliable

Technical specifications of Pellet durability index tester

1. Rotary box: 2pcs
2. Rotational speed: 50rpm, max 1450r/min
3. Rotation number: 500rpt
4. Batch sample capacity: 500g
5. Operation time: 10min
6. Motor Power: 400w
7. Overall size: 600×480×480mm
8. Box size: 300×300×125mm
9. Net weight: 37.5kg
10. Power supply: AC 220V, 50hz
