Model: MJ-F610

Introduction

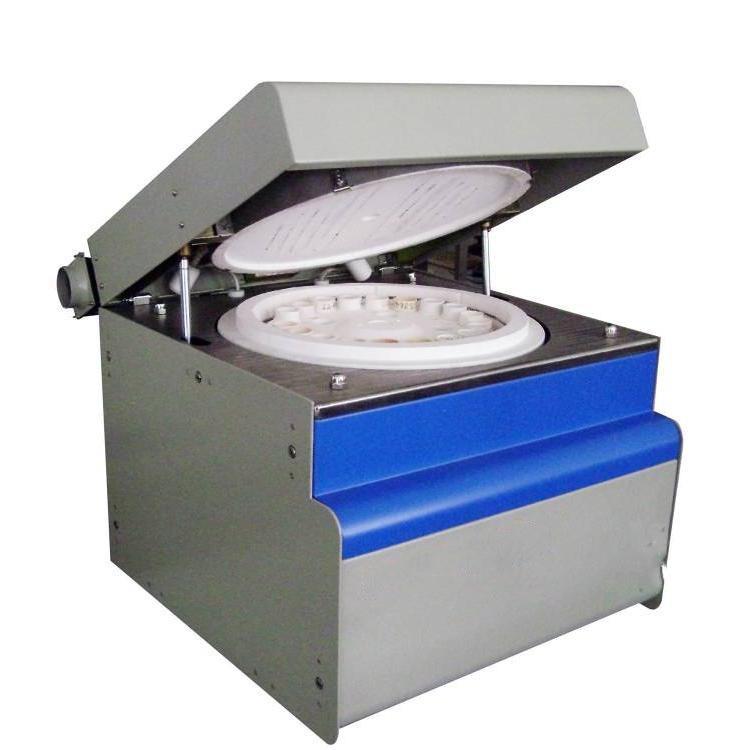

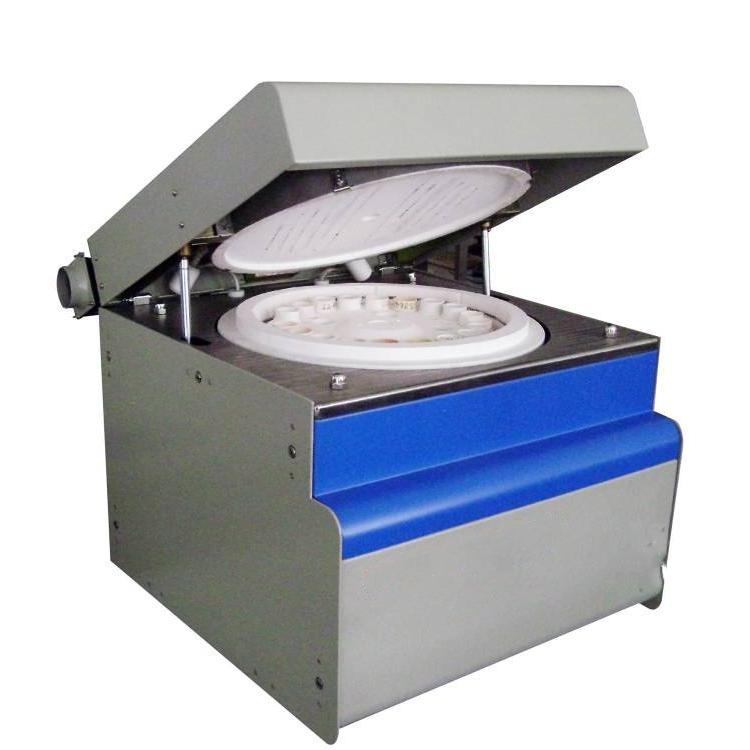

This analyzer can simultaneously test the moisture, ash and volatile content of coal or coke samples. The moisture, ash, and volatile content can be measured independently or in a same time. Adopting Imported furnace, fast heating speed, energy saving, shorter test time is, maximum 19 samples can be measured at a time. Can adopting quick and classic method.



Features

1. High automation: After placing the sample, can automatically complete the test and print the result, easier operation.
2. high accuracy, completely meets the GB/T212 standard.
3. High efficiency: 19 samples of water, ash, volatile content ≤120min (612 type) ≤180min (610 type) Classic method: 19 samples of water (dryness test), ash (slow ash + dry Sex test) 260min, volatile matter 120min (Type 612)
4. The moisture, ash and volatile content can be determined in any combination or individually.
5. Imported integral furnace is adopted, features fast heating speed, energy saving and shorter test time.
6. Imported electronic balance and imported stepping motor are used to ensure stable test performance.



Technical specifications

Power	≤ 5kw
Gas requirements	oxygen: purity 99.5%, pressure 0.1Mpa after decompression, nitrogen: purity 99.5%, pressure 0.1Mpa after decompression, pressure reducer: high 0~25Mpa, low 0~0.4Mpa
Number of crucibles	20
Batch test capacity	19 samples
Sample quality	0.6~1.1g of moisture and ash sample (quality can be adjusted); volatile content of 0.9~1.1g
Furnace temperature range	room temperature~1000℃
Analysis accuracy	meet the standard requirements of GB/T212-2001 “Industrial Analysis of Coal”
Dimensions	605X605X630mm
