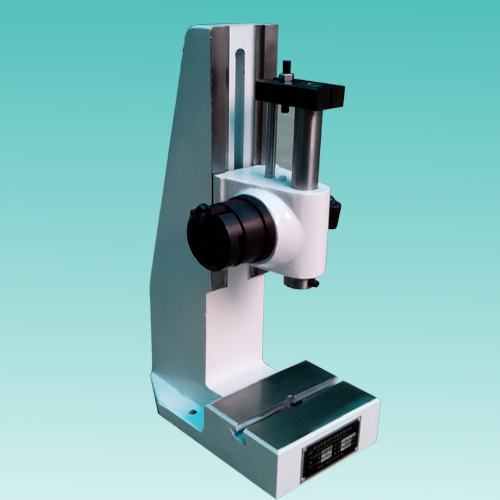

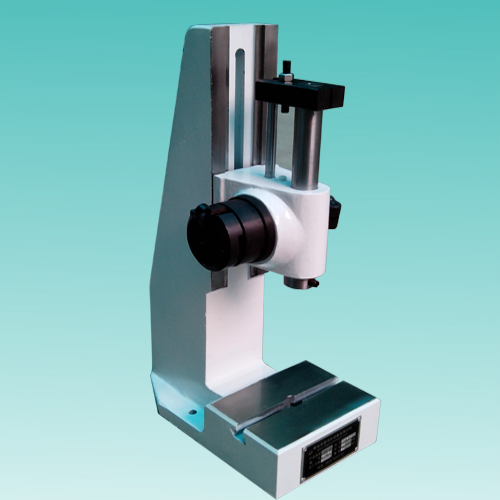

Manual bench press / Toggle press

Applications

The manual press is suitable for assembly, blanking, cutting, molding, flanging, press-in, straightening, bending and riveting in various kinds of industries, it’s kind of common sample processing equipment.



Features

Nice appearance, high precision and reliable quality. The pressure gradually increases during the pressing process, and the maximum force can reach 1.2T;

Small operating force, large pressure, wide stroke range

The stroke, head height and handle rotation angle are fully adjustable, making installation and debugging more convenient and quicker.

The worktable and the rear guide rail adopt an integrated structure to ensure the guiding accuracy; there will be no problems such as swing, shaking, and inaccurate guiding accuracy during use.

The workbench adopts positioning holes and T-slots, convenient for users to install and replace tooling and workpieces.

Equipped with a stroke stop, and a return self-locking mechanism, pressure sensor and peak value meter are optional for better performance



Specifications



HPA—Link type

Model Pressure

KN

Pressure

KG

Stroke mm Table Size mm Spindle Span mm Adjustable Height

mm

 Mounting Hole

mm

Table Hole

mm

Dimensions mm Weight

KG

HPA-1  12  1200  0-60  185*115  86  120-360  Φ10H7   Φ20H7  185*265*610  31
HPA-1R  12  1200  20-60  185*115  86  120-360  Φ10H7   Φ20H7  185*265*610  32
HPA-2  12  1200  0-60  150*110  86  80-265  Φ10H7   Φ20H7  150*265*500  23
HPA-2R  12  1200  20-60  150*110  86  80-265  Φ10H7   Φ20H7  150*265*500  24
HPA-3  5  500  0-40  110*80  65  65-180  Φ10H7   Φ20H7  110*195*410  12
HPA-3R  5  500  20-40  110*80  65  65-180  Φ10H7   Φ20H7  110*195*410  13



HPB-Chain type

Model Pressure KN Pressure KG Stroke mm Table Size mm Spindle Span mm Adjustable Height mm  Mounting Hole mm Table Hole mm Dimensions mm Weight

KG

 KN  KG  mm  mm  mm  mm  mm  mm  mm  KG
HPB-1  2.5  250  0-80  185*115  86  145-380  Φ10H7 Φ20H7  185*265*560  31
HPB-1R  2.5  250  26-80  185*115  86  145-380  Φ10H7 Φ20H7  185*265*560  32
HPB-2  2.5  250  0-80  150*110  86  120-260  Φ10H7 Φ20H7  150*265*450  23
HPB-2R  2.5  250  26-80  150*110  86  120-260  Φ10H7 Φ20H7  150*265*450  24
HPB-3  1.6  160  0-60  110*80  65  60-180  Φ10H7 Φ20H7  110*195*360  12
HPB-3R  1.6  160  17-60  110*80  65  60-180  Φ10H7 Φ20H7  110*195*360  13

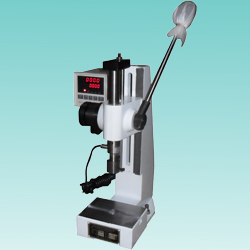

Digital display toggle press

*R model features return self-locking mechanism.
