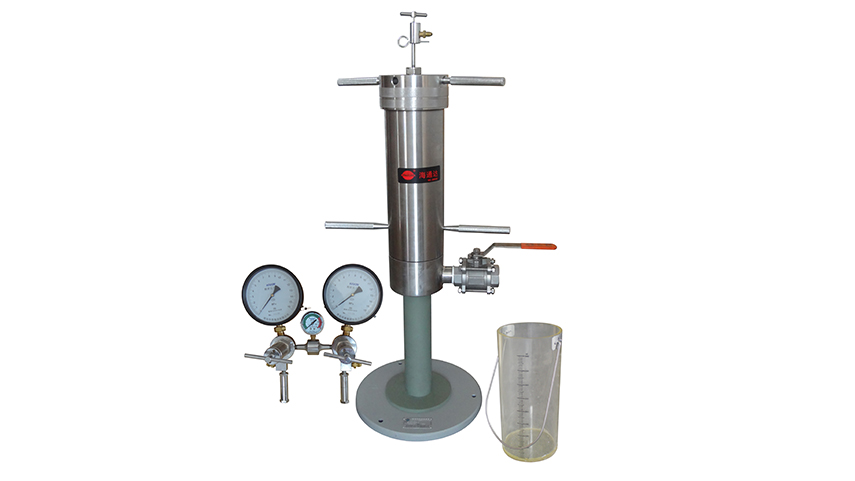

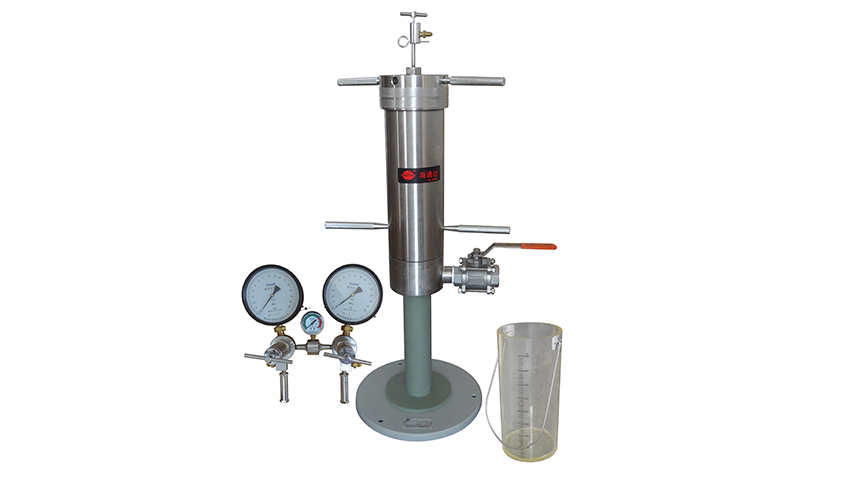

Lost Circulation Material Test Apparatus

Model: LCMT-2

Description

This lost circulation material testing apparatus is designed as per API standards, besides that it increase a pressure reverse exhaust device which to test the reverse broken pressure thus to obtain the lost circulation material strength. It’s kind of common drilling fluids testing instrument.

When choose capable lost circulation material, it’s very important to know the material plugging capacity, this equipment is mainly used to test the material that can re-build the circulation, it can simulate different stratum thus to determine the plugging efficiency and the volume loss before plugging is finished.

Technical Specifications

Term Specifications
Feeding cylinder volume 4000ml
Air source N2
Working pressure (1000 ± 10)psi
Gap plate size 1~6#(6# is overall diameter ring)
Simulation test depth 0~77mm
