Model: RS-5132

Standards: FZ/T 01028, ASTM D5132, JIS D1201

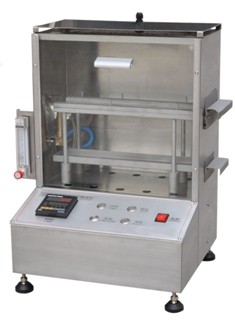

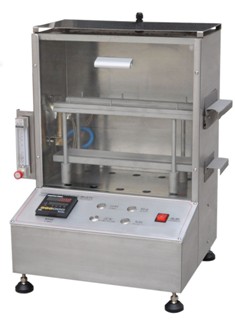

This flammability chamber is used to test the Flame resistance of various kinds of fabrics textiles subject to horizontal flame by complies to the ASTM D5132, JIS D1201 standards.



Features

Electric wire ignition

Lighting burner automatic timing, automatic reset

Ignition timer and spread timer LED indication

Flame height adjustable and flame height measuring device available

Horizontal pull type sample holder for easy access



Technical specifications

Lighter tube dia.: 9.5mm

Lighter tube top to sample test surface: 19mm

Lighter moving motor power: 10w

Light timer set range: 0-99.99sec freely set, standard 15 secs

Spread timer indication range: 0-999.99sec

Flame height measuring device: gauge range 38±2mm

Burning gas: Propane, butane, liquefied gas

Sample clamper size: overall 360mm×100mm, internal 330mm×50mm

Power supply: AC 220V, 50HZ, 50W

Overall dimension: 960×310×480mm

Net weight: 25kg
