Concrete crack depth and width detector



Standards: CESC 21:2000

Model: CWD-510

Description

This detector can detect both the crack width and depth with automatic and manual interpretation function. Easy operation, self-calibration, can be calibrated with a standard scale board.

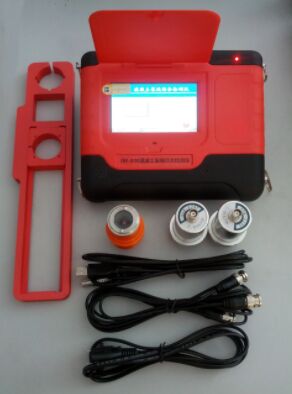

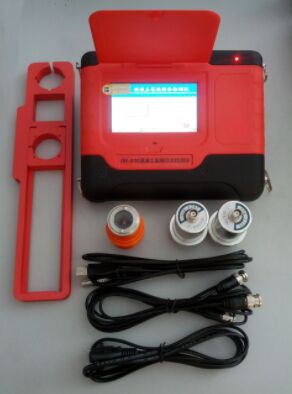

Standard Configurations

Main machine

Plain transducer

Signal cable

Camera

Set rule

Carrying case

Technical specifications

Term Index Term Spec.
Hardware platform ARM9 embedded platform Display 4.3 inch TFT LCD
Width testing range 0mm~6mm Depth Detection range 5mm~500mm
testing accuracy ≤±0.01mm Detection accuracy ±5mm Or not over than 10%
Storage mode 2GB(over 10000 files Power supply mode Built-in lithium battery, 8 hours continuous working time
working temperature -10℃~+55℃ working humidity ≤90%RH
main machine size 173mm×135mm×48mmm main machine weight 0.9kg(including battery)
