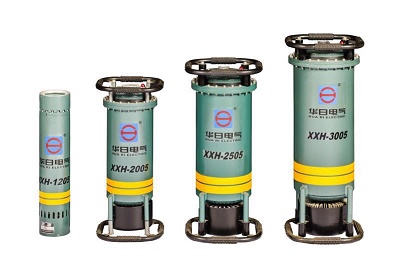

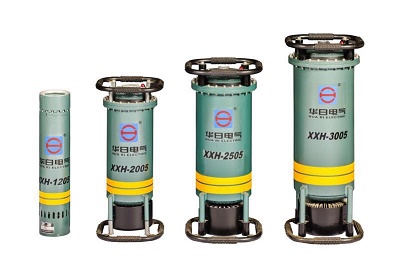

Circumferential glass tube Portable X-ray flaw detector



This is a circumferential glass tube Portable X-ray flaw detector.

Technical specifications

Spec. XXH-120 XXH-160 XXH-200 XXH-250 XXH-300
Voltage regulation range(kv) 40-120 70-160 120-200 150-250 170-300
Tube current(ma) 3 5 5 5 5
Focus size(mm)

Iec336

Normal tube

 1.0×3.5 1.0×3.5 1.0×3.5 1.0×2.5 1.0×3.5
Focus size(mm) IEC336

Imported tube

 5.5 5.5 5.5 5 5
Work mode 1:1 1:1 1:1 1:1 1:1
Input power(kva) ≥1.5 ≥2.0 ≥2.5 ≥3.6 ≥3.6
Radiation angle

Normal tube

 30×360 30×360 30×360 30×360 30×360
Radiation angle

Normal tube

Imported tube

 40×360 40×360 40×360 40×360 40×360
Cooling way forced air cooling forced air cooling forced air cooling forced air cooling forced air cooling
Penetration thickness(mm) 7 12 24 34 40
Generator  size(mm) Ø130×560 Ø 180×590 285×285×650 330×330×750 330×330×840
Generator   weight(kg) 8 16 23 34 40
Controller weight(kg) 12 12 12 12 12
Specs. XXH-320 XXH-200A XXH-250A XXH-300A
Voltage regulation range(kv) 170-320 120-200 150-250 170-300
Tube current(ma) 5 5 5 5
Focus size(mm)

Iec336

Normal tube

 ———— 1.0×3.5 1.0×2.5 1.0×3.5
Focus size（mm）IEC336

Imported tube

 5 ———— 5 ————
Work mode 1:1 1:1 1:1 1:1
Input power(kva) ≥3.6 ≥2.5 ≥3.6 ≥3.6
Radiation angle

Normal tube

 30×360 25×360 25×360 25×360
Radiation angle

Normal tube

Imported tube

 40×360 ———— 25×360 ————
Cooling way forced air cooling forced air cooling forced air cooling forced air cooling
Penetration thickness(mm) 50 27 37 47
Generator  size(mm) 330×330×820 285×285×650 300×300×750 330×330×840
Generator   weight(kg) 43 23 34 40
Controller weight(kg) 12 12 12 12
