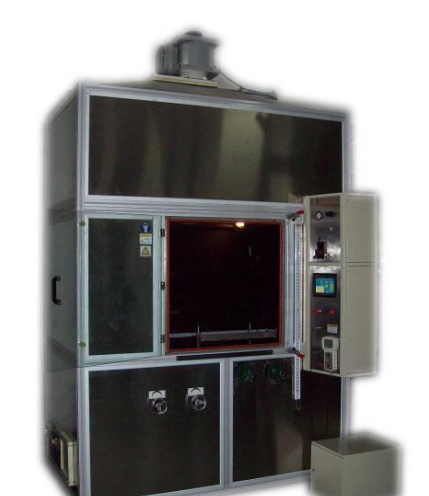

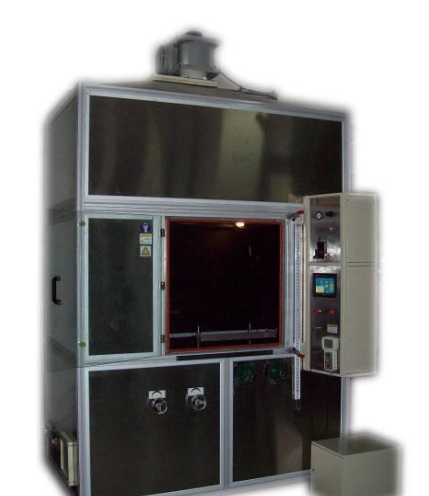

Cable and wire burning test chamber UL 1581(2556)

Model: RS-1581

Standards: UL 1581(UL 2556), ASTM D 5025, ASTM D 5207

The UL wire and cable burning test chamber is used for application of UL2556 9.1, 9.3 and 9.4 burning test, by replacing the bracket, also applicable for VW-1 combustion test in UL224 and UL510 by adjusting the flame size and angle etc.



Features

Use a full set of imported American gas source components, flame temperature measurement components, and flame combustion components;

Controlled by industrial computer PLC and coordinated with color LCD touch screen LCD display;

Humanized design of self-designed fully automatic electrical and mechanical structure, just press the start button can automatically completed the test, and the test results are displayed in a report format on the LCD screen, which minimizes human error and truly guarantees the accuracy and reliability of the test results.

Can greatly reduce labor intensity, improve the accuracy of the test, and the operator can completely avoid the smoke poisoning.

Specially suitable for the testing institutions and manufacturers that use it frequently, It can fully meet the UL1581 section 1060 (vertical combustion and FT1 test), section 1080

(VW-1 burning test), section 1090 (horizontal burning test for electrical wires), section 1100 (horizontal sample/FT2 burning test) and UL2556 related standards. Also it can meet the burning test of UL510 and UL224 related clauses.

Test box is equipped with a removable three-face mask to facilitate different test requirements. The horizontal clamps in section 1090 of UL1581 are rarely used. In order to prevent corrosion of the horizontal clamps used for section 1090 of UL1581, they are made movable and placed in the combustion box during the test.

The box structure adopts aluminum alloy frame structure, and the sealing plate adopts 304 stainless steel. It is designed as upper and lower sections, which can be disassembled and assembled at the user’s laboratory site to facilitate the installation and movement of the equipment;

The gas source of the test flame is coal gas or liquefied petroleum gas. In case of dispute, methane gas should be used. The flame application time and holding time can be adjusted;

With gas flow meter and pressure regulating valve (auto-ignition),

With temperature measuring device

The front observation windows and doors are made of transparent tempered glass;

Pneumatic flue check valve to prevent the disturbance of combustion caused by the backflow of external air; two pneumatic inlet valves to ensure sufficient air exchange; can meet UL candle sealing detection

Powerful industrial fan with low noise, rapid air change;

The test torch meets the requirements of ASTM D5025 in accordance with UL1581-2006 and is manufactured by Humboldt Manufacturing Co. The angle between the position of the torch and the vertical is adjustable at 0° and 20°;

The specifications of the burner meets the requirements of UL2556 standard, with facilities such as supply and exhaust systems, observation windows, operating sealing gloves, internal lighting, etc.; strictly in accordance with UL standards, the flue check valve is placed between the box and the fan between. The cabinet has good air tightness and no air enters. The distance between the flame and the sample is accurate;

Sample holder and gauge: Configure our unique sample holder (stainless steel), flame height gauge, blowtorch position gauge, etc. according to the requirements of the above test items, which are easy to use.



Specifications

Test terms UL1581 Section 1060: Vertical combustion and FT1 test

Section 1080: VW-1 Burning Test

Section 1100 Horizontal Specimen/FT2 Burning Test

UL2556 Add protective cover and bracket Chapter 9

Combustion characteristic test, (corresponding to UL1581 combustion test item).

Chamber body High anti-corrosion spraying aluminum alloy frame, SUS304 stainless steel plate sealing, spraying high anti-corrosion paint, there is no air circulation during the test.

There is a toughened glass observation door on the front of the box, which is convenient for observing the test situation.

The operation panel is located on the right side of the observation door to facilitate observation of the test situation.

Outer dimensions: 1800 X 1100 X 3200 mm (length X width X height), internal volume>4.0m3,

Meet the requirements of the standard for the size of the box at least 4m3, the internal dimension of each side at least 610mm, and at least 2m3 above the flame.

The color inside the box is black, and the illuminance is less than or equal to 20Lx.

Control system Imported branded industrial computer PLC main control, well-known manufacturer’s color LCD touch screen LCD display and stepping motor control;

Fully automatic control: The touch screen control system can be used to set and record the number of ignitions, flame application time, stop time, and continuous burning time according to different test requirements;

Extended burning timing control: It adopts a handheld remote control, which can be controlled by the remote control during operation, without watching the touch screen, which is convenient for observing the test. It is connected to the LCD screen to automatically display and record each test result.

Air supply Imported parts are required for components such as flow meters, pressure gauges, and back pressure gauges. The specifications of the parts meet the requirements of standard use.
Temp. measure system Imported extension thermocouple wire, manufacturer: Omega Engineering,

Specifications: Φ 0.5mm stainless steel tube outer jacket * 500mm K type, the long-term maximum working temperature can reach 1000℃ or more;

Imported thermocouple sensor Limited Thermocouple Assembly Slug, manufacturer: Omega Engineering,

The electrolytic copper block is 10.0±0.05g, which meets the ASTM D 5207-03 standard.

It can be judged whether the temperature and time are qualified in the touch screen;

Test device The horizontal/vertical bracket is made of S316 stainless steel, meets the requirements of UL1581 and UL2556; spring-compressed self-tightening clamp; manual operation of the internal combustion device in a sealed state through sealed heat-resistant gloves.
Burning blowtorch 500W (125mm) blowtorch, meeting ASTM D 5025-05 standard requirements,

Blowtorch manufacturer: HUMBOLDT MFG. CO. (recommended by UL)

Blow torch operation mode: Automatically change the angle and direction of the torch to make the flame leave the sample
Burning gas control Gas: 99% methane purity (standard requires 98% purity)

Gas control system:

a Mainly include: flow meter, pressure reducing valve, differential pressure gauge;

b. Imported float flowmeter: calibrated according to ASTM D3195 standard. Flowmeter with accuracy ≥2%, maximum flow rate: 1000ml/min;

Calibrated Flowmeter, Manufacturer: Matheson Tri-Gas, Inc.

c. Combustion pressure reducing valve: 1, which can adjust the gas flow to 0.069Mpa~0.138Mpa;

d. U-type differential pressure gauge: Indicate the current gas pressure difference, with a range of 1000mm water column, manufacturer: Dwyer Instruments

Gas exhaust a. A well-known brand of low-noise industrial fan, which exhausts quickly, and the test personnel are completely inaccessible to the gas, which is harmless to the body;

b. Automatic flue check valve, fully automatic control, and automatic opening and closing of the fan, fully conforming to standard design.

Record judgement a. Whether the extended burning time exceeds the standard required time

b. Whether the cotton under the box is ignited;

c. Whether the burnt area of the kraft paper indicator flag above the sample is greater than 25%; (kraft paper is an accessory and needs to be purchased separately)

d. Other judgment requirements.

Power supply AC220V, 50Hz,6A
Air source 0.3~0.4Mpa compressed air
