Model: ETNJ-10

Description

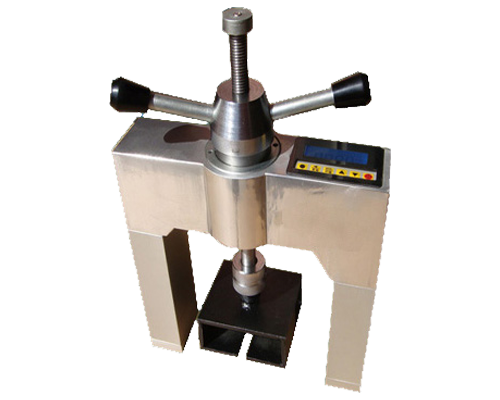

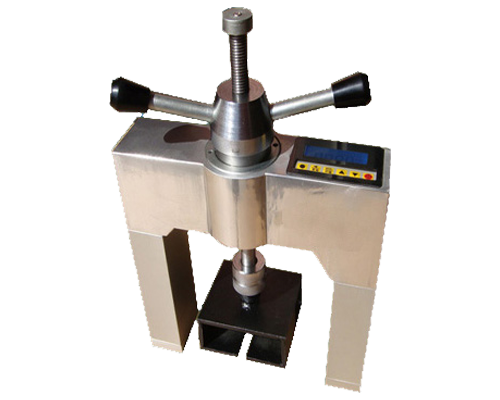

This bonding strength tester is used to test the bonding strength of rivet, heat-insulation material, tile, the tester is comprised of test stand, load cell, digital pressure gauge, test accessories, it’s kind of common construction non destructive test equipment.

Features

◆ Integration design, digital pressure value display
◆ Door type for big travel
◆ Special alloy made
◆ Peak value maintain and data storage function
◆ LCD display, low power consumption
◆ Hi-speed USB communication port, professional analysis software( optional)

Technical specifications

Max. pull out force: 5KN-10KN

Pull out travel: 60mm

Error: <2%

Battery: 4.2V rechargeable battery

Net weight: 1.8kg

Standard configuration

1.Main machine
2.ф3/ф5/ф8 rivet pullout block, 1pc each
3.standard block: 100X100, 3pcs( hanging type), tile pullout block is optional part
4.recharger: 1pc
5.connecting cable: 1pc
6.carrying case: 1pc
7.Operational manual, certificate, warranty card, 1pc
8.Application software
