Unglazed ceramic tile deep abrasion tester ISO/DIS10545-6

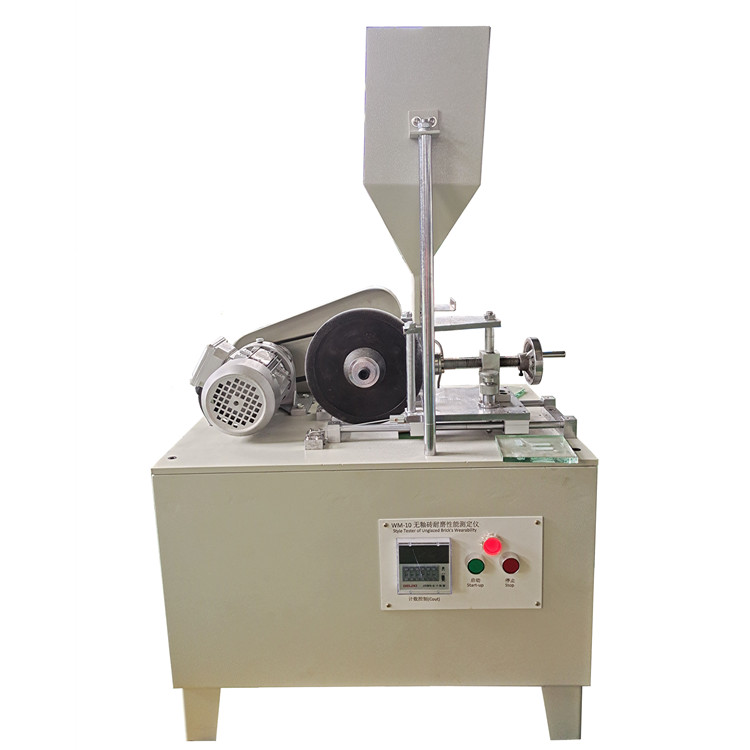

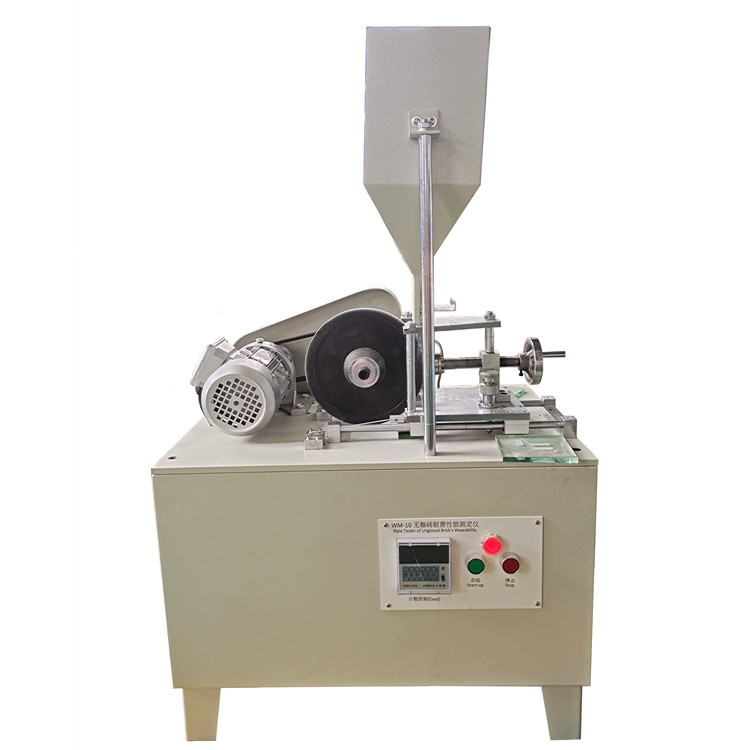

ISO 10545-6 Abrasion tester

Model: WM-10

Test standards: GB/T3810.6-2016, ISO/DIS10545/6-2010

This abrasion tester is suitable for testing of unglazed ceramic tiles, mosaics etc, the abrasion wheel rotation number can be preset and automatic controlled, fully meets the ISO/DIS10545-6 standards.



Technical specifications

Key Metrics WM-10 WM-70 (for inorganic materials)
Scope of Application Ceramic unglazed tiles paving brick
meet the standard GB/T3810.6—2016,ISO/DIS10545-6—2010, GB/T12988-2009
Grinding wheel speed 75 ± 4r/min constant Constant 75±4r/min
Grinding wheel Grinding wheel diameter of 200 ± 0.2mm, thickness of 10 ± 0.1mm, hardness of HB500 or above Grinding wheel diameter 200 ± 0.2mm, thickness 70 ± 0.1mm, hardness HB203– HB245.
sample size 100mm ×150 mm 100mm ×150 mm
abrasive F80 corundum abrasive 36 # corundum abrasive
Pressure weight 2.5 kg 14kg
Test time The test time can be pre-set and displayed digitally The test time can be pre-set and displayed digitally
Storage hopper About 0.86kg, (based on actual calibration value) The storage hopper has a capacity greater than 5L
Configuration Including one WM-10 host and one kilogram of F80 corundum abrasive. Including one WM-70 host and one kilogram of 36 grit corundum abrasive
