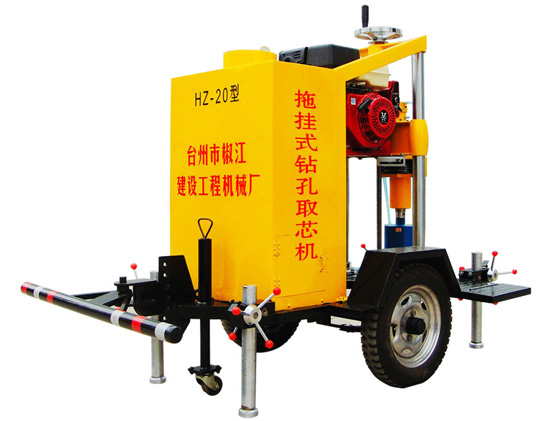

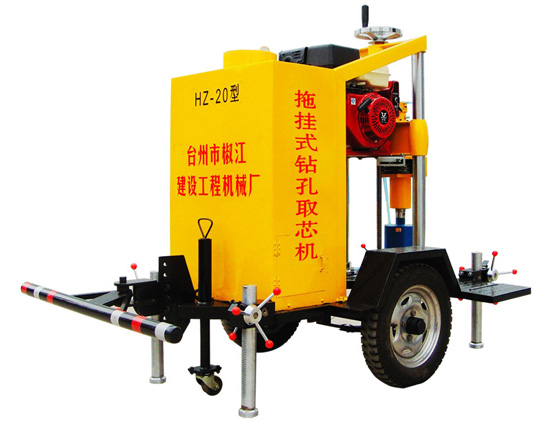

Trailer Mounted core drilling machine

Model: HZ-20

Description

This core drilling machine mainly serves two purposes, first is horizontal hole drilling, suitable for road/track spike installation, road pile installation, bridge drilling hole, pile foundation drilling; the second is coring, coring road concrete sample for test. It’s kind of a very common road and building equipment.

Main features

1.Labor-saving, one or two persons can operate;
2.4 times working efficiency higher;
3.Equips water tank, more stable performance, better coring results;
4.Longer diamond bit tooling life;
5.Equips toolbox under water tank thus reduce tool carrying.

Technical specifications

Term Spec.
Power type MZ175 YAMAHA, MZ250 YAMAHA, GX270 HONDA, MZ300 YAMAHA, MZ360 YAMAHA, GX390 HONDA manual/electric start
Gasoline #97
Max drilling dia 200mm
Max. drilling depth 700mm
Main shaft rotation speed 3600/min
Net weight 400KG
Overall size 2200*1400*1600MM
