Model: FZ-033E

Standards: GB/T 3917.1-1997, ASTM D1424/5734, ISO 1974/9290

Description

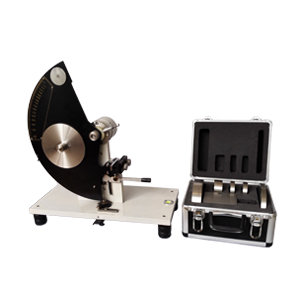

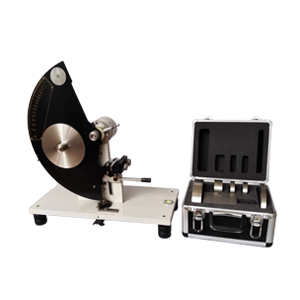

This tester is used to test the tearing strength of fabric textiles, also can be used for test of paper, plastic cloth, film, adhesive tape, metal sheet. It uses Elmendorf impact Pendulum method.



Features

Digital decoder ensure accurate test, test accuracy ≤±0.02％F.S

Intelligent touch screen operation interface,

Pneumatic clamping, high efficiency & stable

Automatic cutting, less working strength

Report printing, PC interface, easy test data review

Compact size, easy moving

Multi measuring units available for different test standard

Technical specifications

Measuring range: 0~16N, 0~32N, 0~48N, 0~64N, 0~80N,0~96N,0~112N,0~128N

Tear length: 43mm

Test accuracy: ≤±0.02%F.S

Cutting length: 20±0.2mm

Sample size: 100×63mm

Sample clamping: pneumatic

Working power: AC220V, 50Hz

Overall dimension: 560×420×530mm (L×W×H)

Net weight: 68Kg
