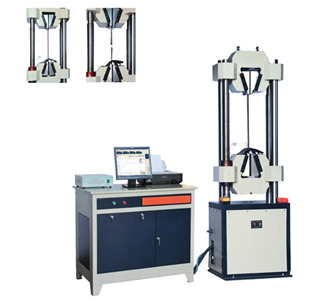

Servo control steel strand testing machine



Description

This machine is used to perform mechanics test for prestressed concrete steel strand, it can test the steel wire tensile strength, non-proportional extension strength, elastic modulus, elongation rate. It’s kind of common material testing machine

Features

Servo controlled, high accuracy

National patent product, leading technology

Six kinds of test curves generation

Tension strength Rm, plastics extension strength Rp0.2, elastic modulus E and max elongation rate

Equipped with professional lengthen fixture

Self-checking function, automatic diagnostics

Technical specifications

Spec.

 GWE-600B GWE-1000B GWA-600B GWA-1000B

Max test load

 600kN 1000kN 600kN 1000kN

Load measuring range

 2%~100%F.S

Testing Load indicating value relative error

 ≤±1%

Deformation accuracy

 ±0.5%F.S

Tension test space (mm)

 1000

Compression test space (mm)

 600

Clamping mode

 Automatic clamping

Round sample clamping diameter(mm)

 15.20( others tailor made)

Upper lower platen size(mm)

 204×204

Tension test two column distance(mm)

 450 550 450 550

Net weight (kg)

 2600 3000 2600 3000
