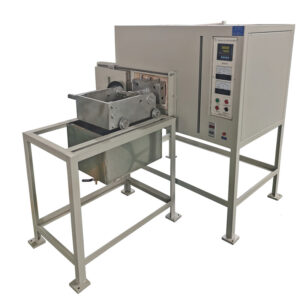

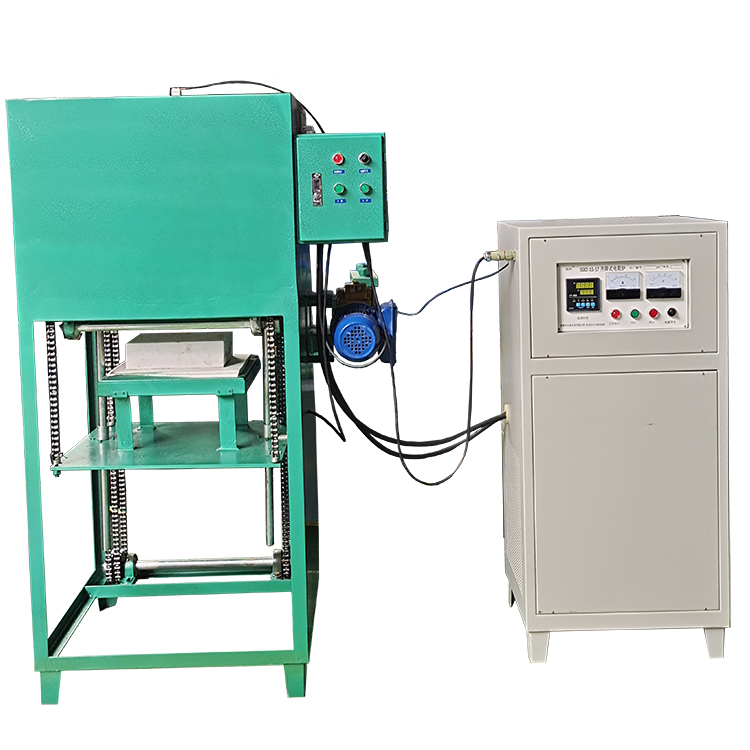

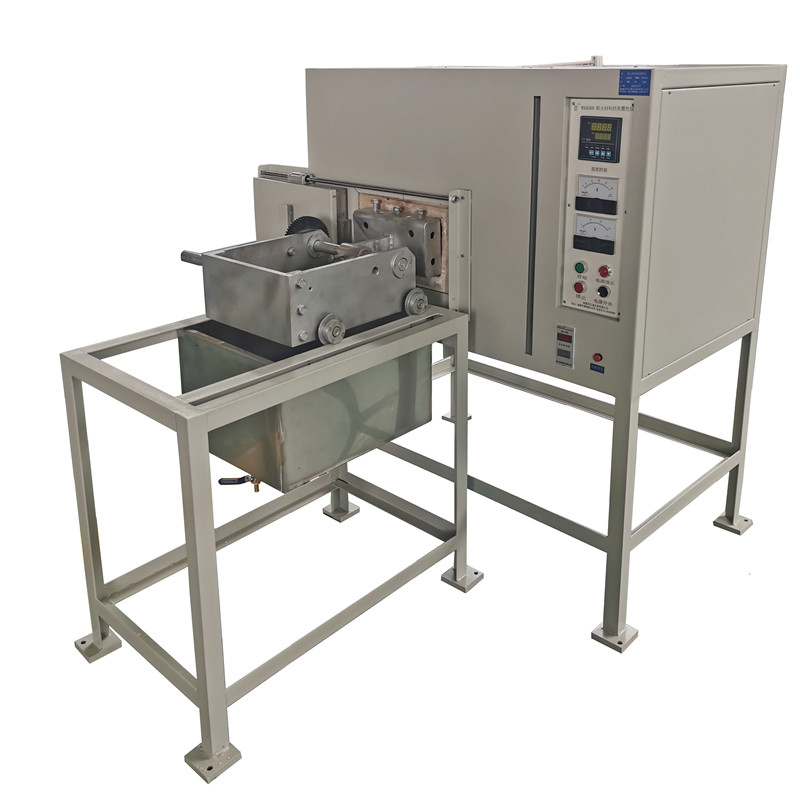

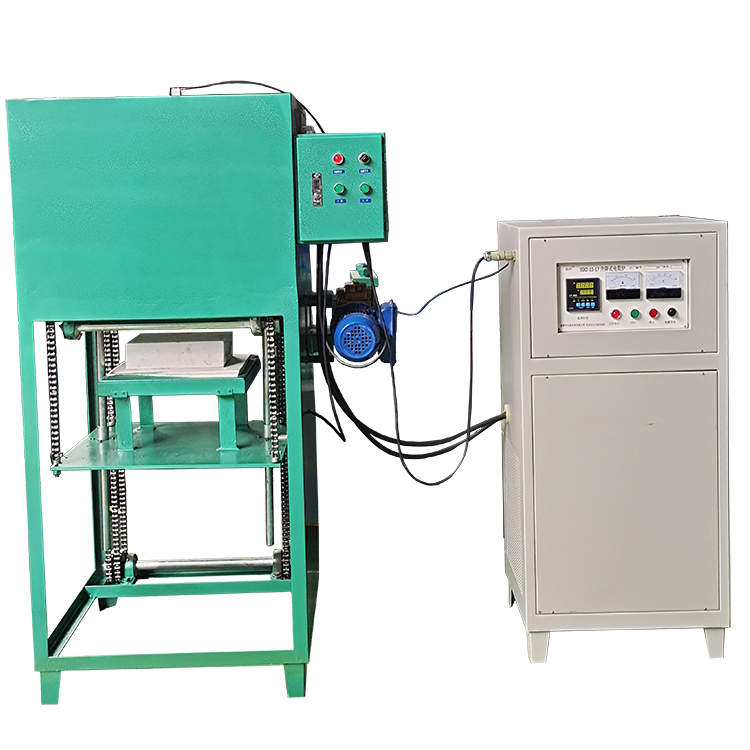

Refractory material thermal shock resistance tester



        RSQ-06BS(water cool)                                                           RSQ-06BF(Air cooling)

This instrument is applicable to the high-temperature thermal shock resistance of aluminum silicate refractory materials, alkaline refractory materials, siliceous refractory materials, insulation refractory materials, amorphous refractory materials, and other high-temperature materials in GB/T17617-2018, YB/T2206.2-1998 “Test Method for Thermal Shock Resistance of Refractory Materials”.

Technical specifications

Model RSQ-06BS(water cool) RSQ-06BF(Air cooling)
Test temperature



 1350 degrees Celsius, controlled by a computer program. 1200 ℃; Short term maximum temperature: 1350 ℃;
Sample size range



 (200-300)/(100-150)/(40-80) mm (length/width/height) Furnace size: L320 ×W240 × H190mm;
Test station 3  3
Heating rate 0-15 ℃/min; 0-15 ℃/min;
Insulation temperature error ± 2 ℃; ± 2 ℃;
Equipped with  Water tank Equipped N/A
Sample conveying device Equipped Equipped
Power supply 380VAC, 12kw 380VAC,10kw
