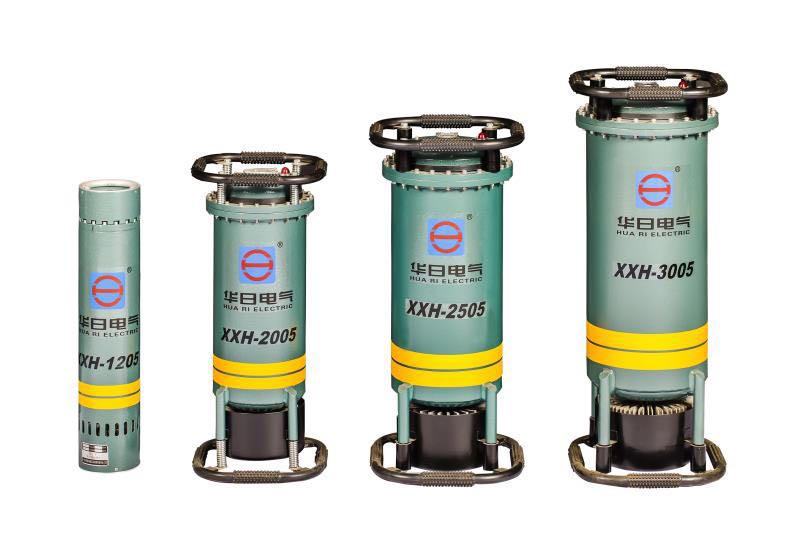

Portable X Ray flaw detector with Glass tube



The portable x-ray flaw detector is kind a very common non destructive testing equipment, it can detect the flaw of metal and nonmetal materials, it mainly detect the volume defects such as stomata, slag, Incomplete welding etc. The flaw detector is comprised of X-ray generator and controller.

Technical specifications

Specs. XXQ-120 XXQ-160 XXQ-200
Voltage regulating range(kv) 40-120 70-160 120-200
Tube current(ma) 5 5 5
Focus size(mm)

Iec336

Normal tube

 1.5×1.5 1.5×1.5 1.5×1.5
 Focus size(mm)

IEC336

Imported tube

 ———— ———— ————
Work mode 1:1 1:1 1:1
 Input power(kva) ≥1.5 ≥2.0 ≥2.5
 Radiation angle

Normal tube

 40° 40° 40°
Radiation angle

Imported tube

 ———— ———— ————
Cooling way forced air cooling forced air cooling forced air cooling
Penetration thickness(mm) 10 19 29
Generator size(mm) 130×560 180×590 285×285×650
Generator weight(kg) 8 16 23
Controller weight(kg) 12 12 12
Specs. XXQ-250 XXQ-300 XXQ-320
Voltage regulating range(kv) 150-250 170-300 170-320
Tube current(ma) 5 5 5
Focus size(mm)

Iec336

Normal tube

 2.0×2.0 3.5×3.5 ————
 Focus size(mm)

IEC336

Imported tube

 ———— 2.5×3.0 2.2×2.6
Work mode 1:1 1:1 1:1
 Input power(kva) ≥3.6 ≥3.6 ≥3.6
 Radiation angle

Normal tube

 40° 40° ————
Radiation angle

Imported tube

 ———— 40° 40°
Cooling way forced air cooling forced air cooling forced air cooling
Penetration thickness(mm) 39 50 60
Generator size(mm) 330×330×750 330×330×840 300×300×820
Generator weight(kg) 34 40 43
Controller weight(kg) 12 12 12
