Model: FWD-L100

Standard: ASTM E2835-11, ASTM D4695, TB10414-2003 / TB10102-2004(China), TP BF-StB (Germany)

The falling weight deflectometer is used to measure the vertical deflection of the load plate response of a surface to an impulse load. the deflections is either correlated to pavement surface or used to determine characteristics of the materials used for the pavement foundation. It can quickly & precisely obtain the dynamic deformation modulus (Evd value) of soil and other construction materials.

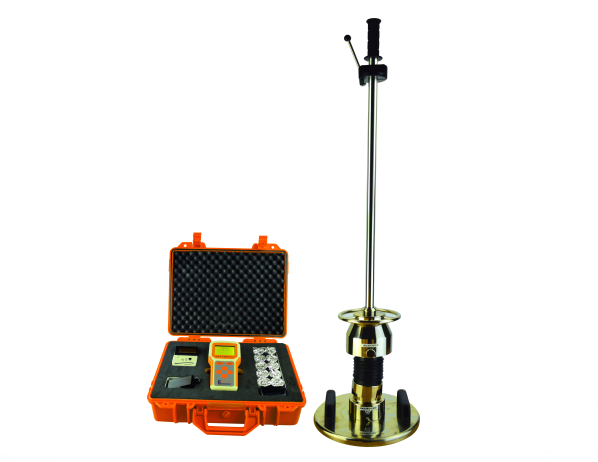

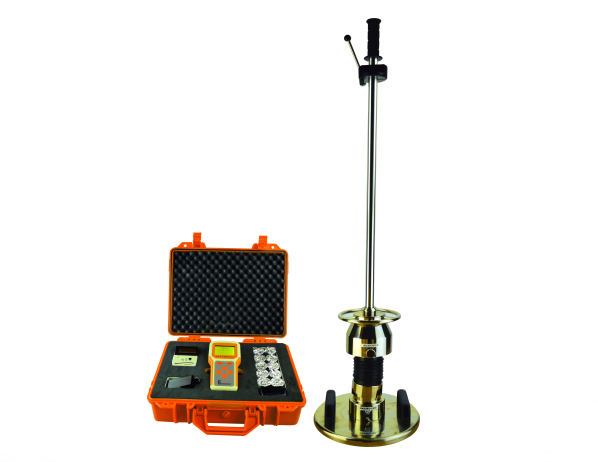

The deflectometer is comprised of a loading mechanism, a loading plate, a electronic settlement measuring device.



Features

a. Faster & lower cost

Within 3mins for each test point, rapid results obtained;

No external loading device needed, no pollution, no nuclear

b. Easy operation, human-friendly

Light in weight, compact size, human-friend design

Easy access to even narrow test place.

c. Reliable, higher accuracy

Key parts such as Sensor, data logger, loading damper are original imported types from Germany, guarantee high reliability and accuracy.

Technical specifications

Loading device

Total weight: 15kg

Drop hammer weight: 10kg

Max. impact power: 7.07KN

Continuous impact time:17.0±1ms

Material: zinc plated steel / alloy steel

Loading plate

Diameter: 300mm

Thickness: 20.0mm

Weight: 15.0kg

Material: zinc-plate alloy steel

 Electric sink tester

Sink testing range: 0.1-2.0mm±0.02mm

Evd Pressure testing range: 10MPa-225MPa

Power supply: Lithium battery

Temperature application range: 0-40℃

Overall size: 368mm×268mm×168mm

Storage capacity: 2000 groups test curves

Weight: 4kg

Total Configurations

Loading mechanism, loading plate, electronic settelment measuring meter, printer, PC software, operation manual, carrying case
