Civil engineering & Material Testing equipments

Portable Anchor pull out tester

Model: MLS

It’s a portable anchor bolt pull out tester which can be used to test the anchoring strength of anchoring rods, steel rod, expansion bolts and other anchoring device.

Features

LCD display with backlight

Peak maintain

Can store up to 200 units data

Overload protection device guarantee no damage to oil cylinder when no load.



Technical specifications

Oil cylinder center hole 18mm
Oil cylinder stroke 50mm
Measuring range 0-10kn, 0-30kn, 0-50kn
Load min readout 0.001kn
Weight Manual pump 2kg, oil cylinder 2kg, total weight 7kg
Common anchorage device Φ6-12
Test accuracy ±1%



Standard configuration

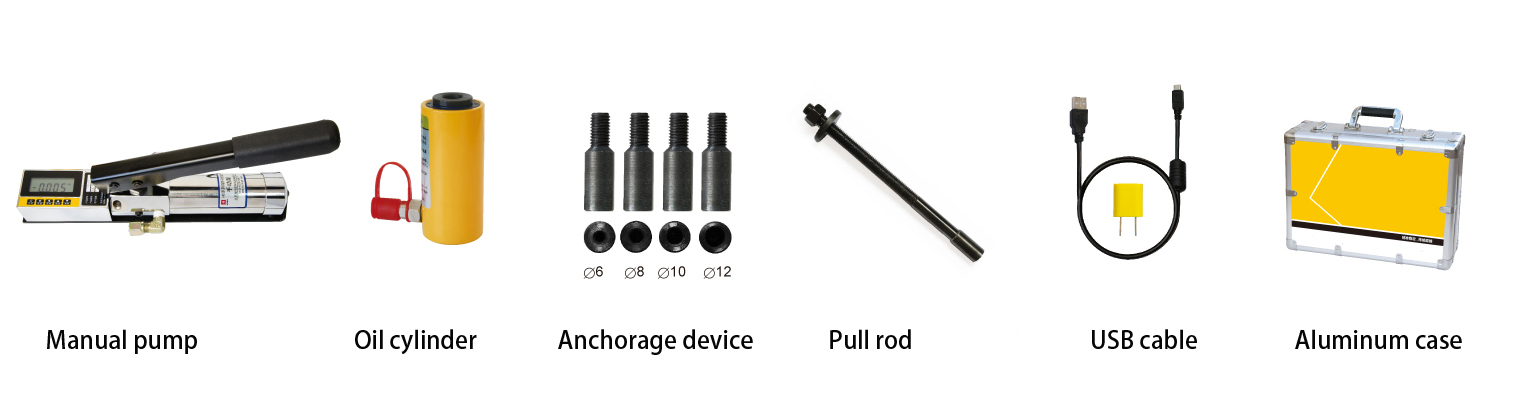

Manual pump, oil cylinder, anchorage device Ø6- Ø12, pull rod, USB cable, Aluminum case
