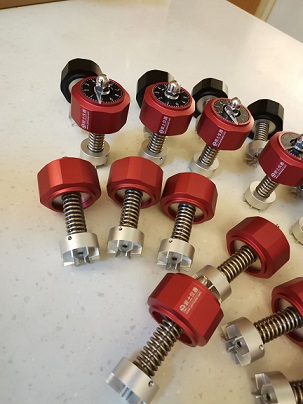

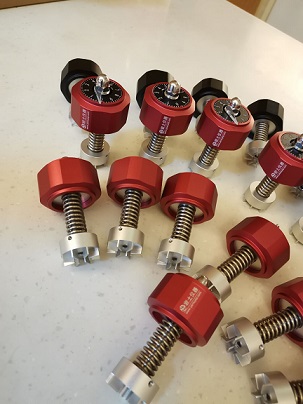

Pocket vane shear test set ASTM D8121/8121M

Model: TSJ-1M

Standards: ASTM D8121/8121M

Introduction

It’s used to test the shear strength of cohesive soil either in lab or site, more portable and easy to operate.

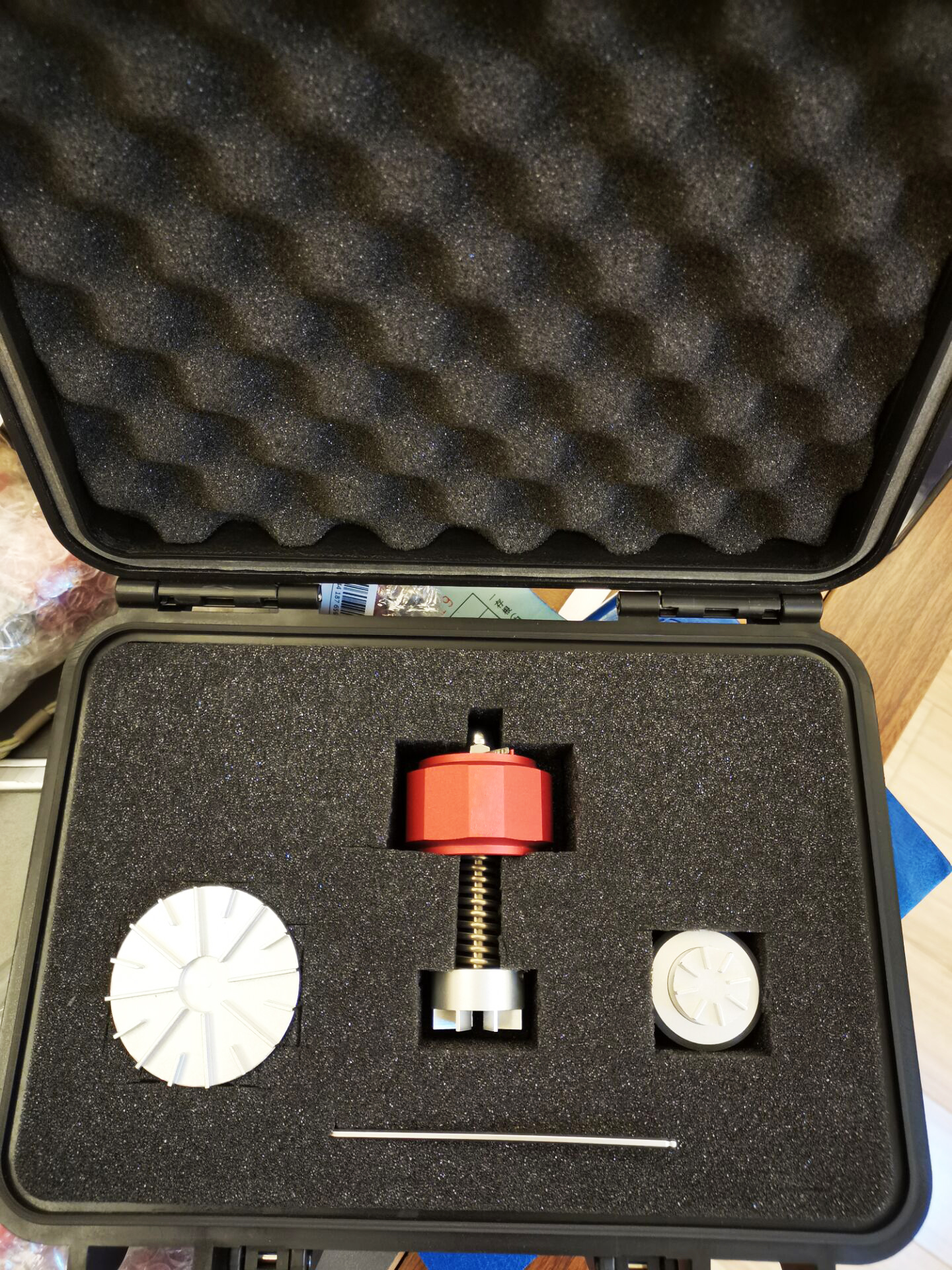

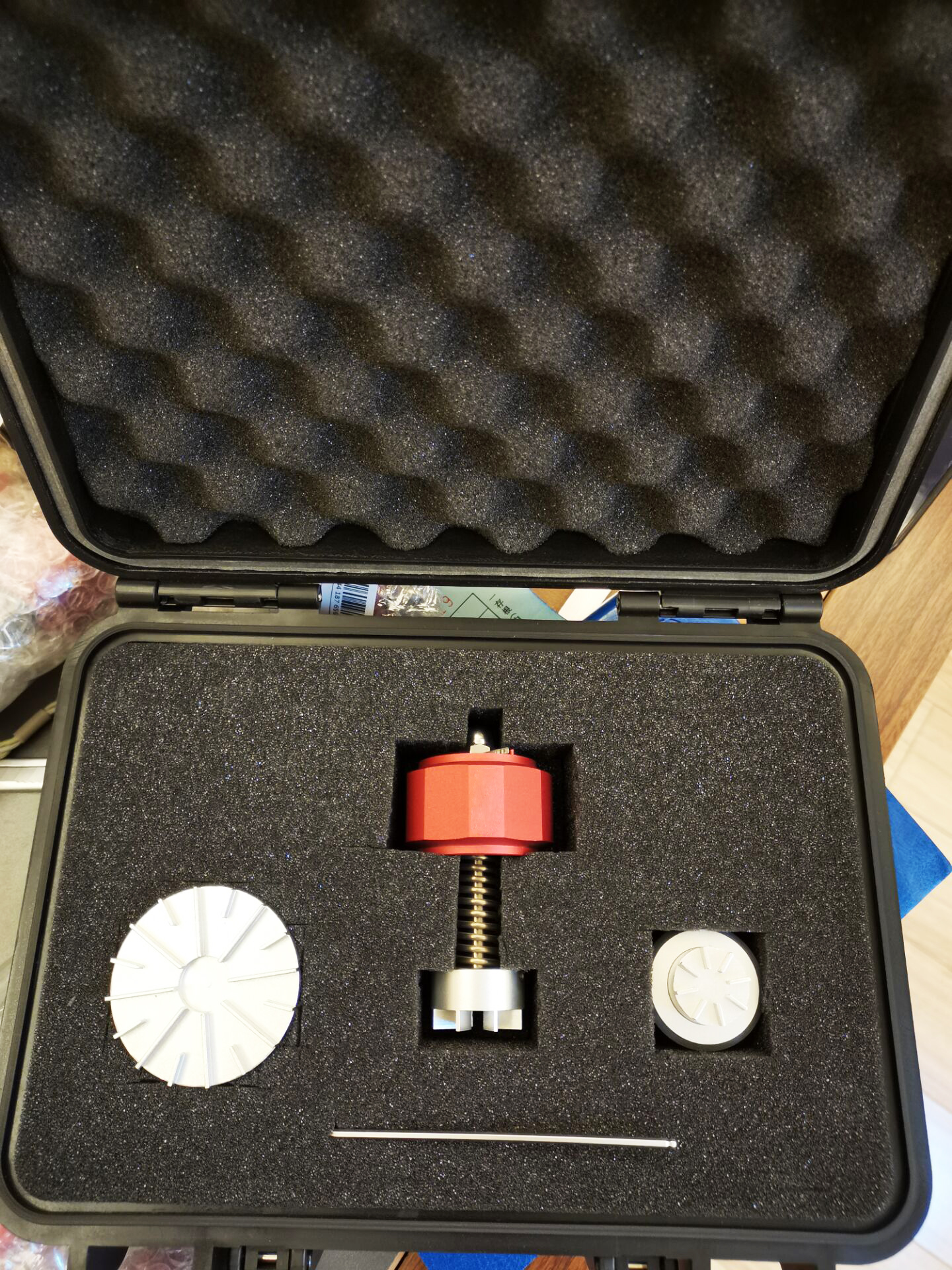

The whole set of instrument consists of 1 spring torsion meter, 3 cross heads of different sizes and 1 allen wrench. Using three different heads, the test range is 0~0.2, 0~1, 0~2.5kg/cm2, the dial scale is divided into 50 scales, and the test accuracy is better than 5%.



Features

  1. More Portable with whole set weight around 0.8kg
  2. Precision integrated cross board head for longer tooling life
  3. All metal structure, durable and cost-effective
  4. Separate packing boxes, easy to carry and better protection



Specifications

Code Dia. /mm Measure range /kg/cm2 Multiplier
A 25.5 0~1 1
B 19 0~2.5 2.5
C 48 0~0.2 0.2
