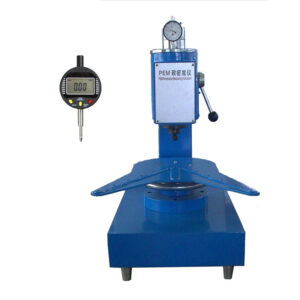

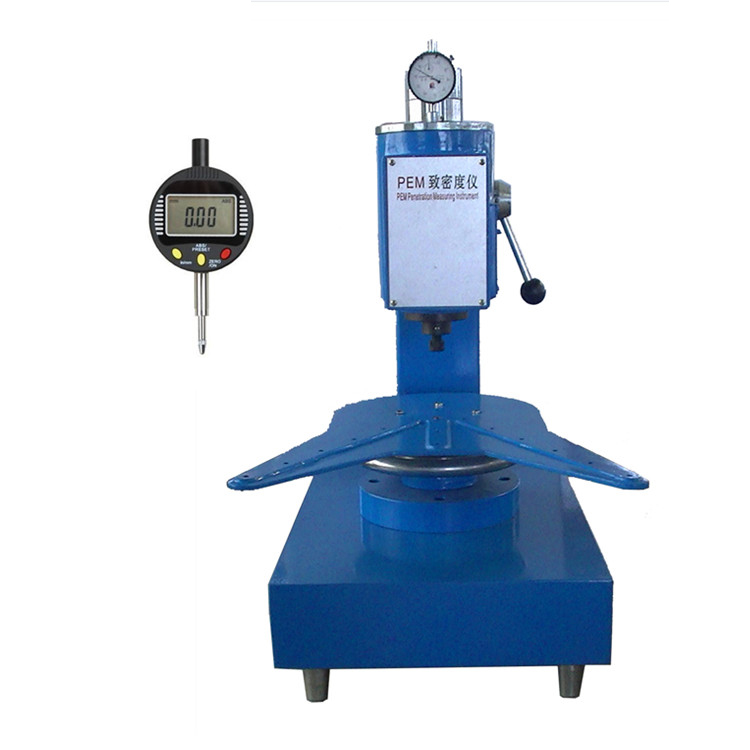

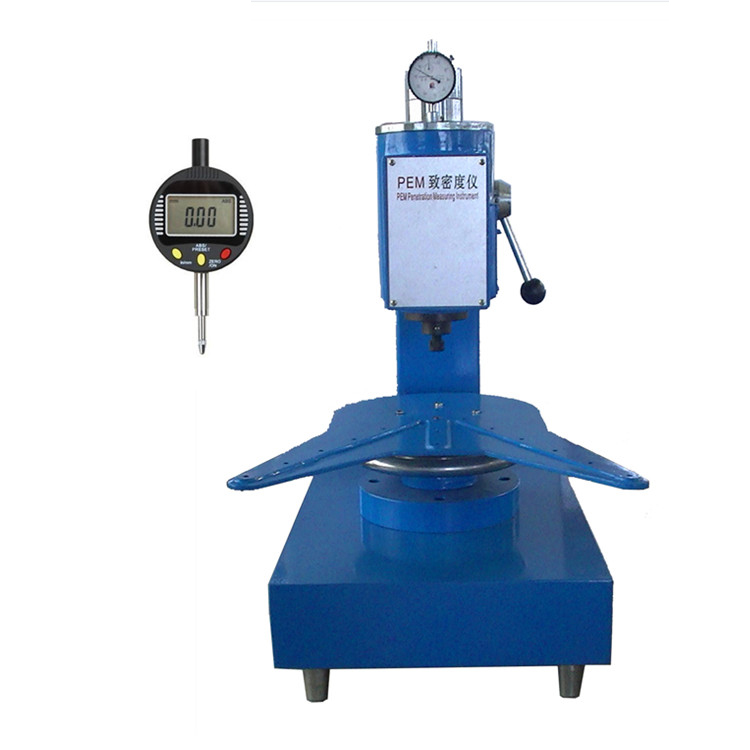

Nonmetals penetrometer

It is a specialized instrument used to determine the density of non-metals such as ceramic tiles. It is composed of main frame, loading and unloading mechanism, indenter, sample support table and its lifting mechanism, and indentation depth measuring device. The indenter includes a variety of needle indenters, all made of stainless steel.



Specifications

  1. Preload: 1.961N
  2. Main load weight: 10.58N, 13.72N
  3. Indenter size: 0.6mm, 0.7mm, 0.9 mm optional
  4. Measuring range: 0.01~3mm (indentation depth).



Configuration

Including 1 PEM host, 1 dial indicator (digital dial indicator can be selected according to customer requirements, the cost is extra), 3 pressure needles, 3 weights.
