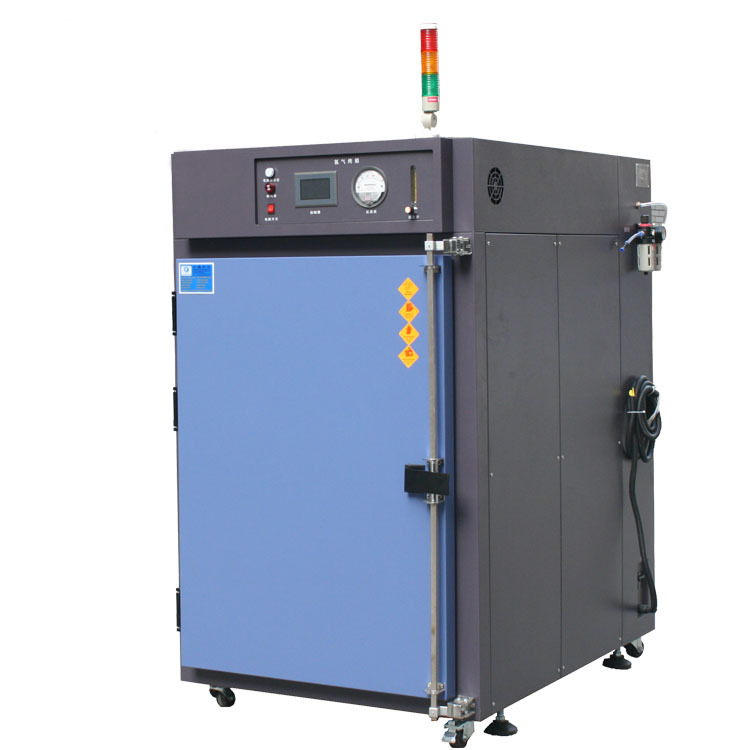

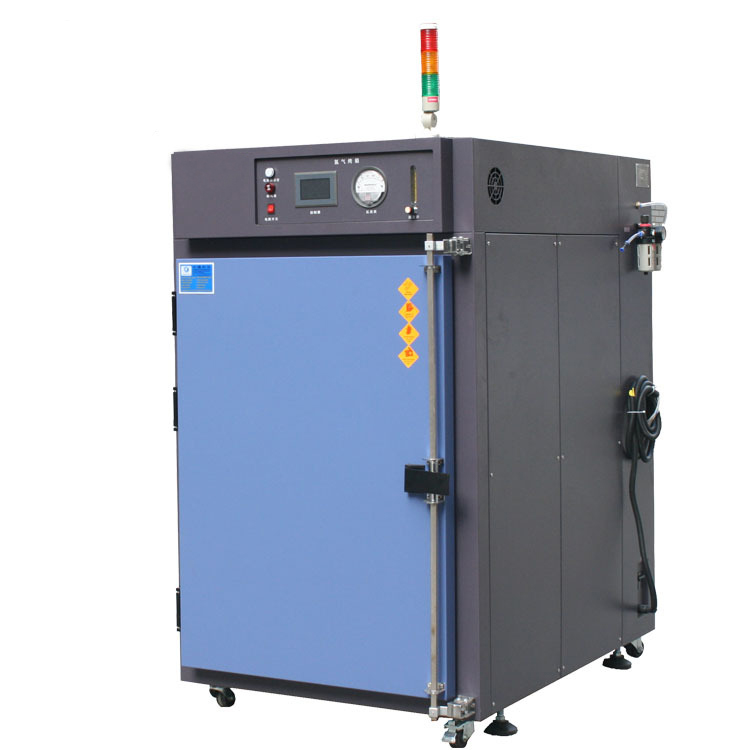

Nitrogen purge oven

Features

Digital display controller Samwon ST590E-00 or touch screen programmable controller

Hot wind circulation heating, can reach 200℃ in 30mins

Glass wool insulation, enclosure temperature won’t over room temperature by 10℃



Specifications

Model DHGD-072 DHGD-270 DHGD-480 DHGD-600 DHGD-720 DHGD-1000
Inner size(cm) W×H×D 40×45×40 60×90×50 80×100×60 100×100×60 100×120×60 100×100×100
Overall size(cm) W×H×D 72×116×56 93×163×67 110×172×77 130×172×77 116×170×116 116×150×166
 Temperature range RT+25℃～200℃（300℃）
 Temperature fluctuation ±0.3℃
 Temperature uniformity ±1%℃
 Temperature resolution 0.1℃
 Oxygen concentration 0-2000 PPM
Temperature rise time  30mins
 Enclosure material  Cold rolled plate + baking paint
 Liner material SUS#201（when >200℃ SUS#304 used）
 Heat insulation material Glass wool
Circulation system Centrifugal fan
Heater SUS#made
Controller Digital display, keypress
Nitrogen system Flow meter+pressure difference meter(oxygen analyzer optional)
Accessories Control status indicator, shelve(2pcs, height adjustable)
Safety device Phase sequence protection, over temperature, over current, overload
Power supply AC 3Ψ 380V 60/50Hz
Customized service Yes
