Civil engineering & Material Testing equipments

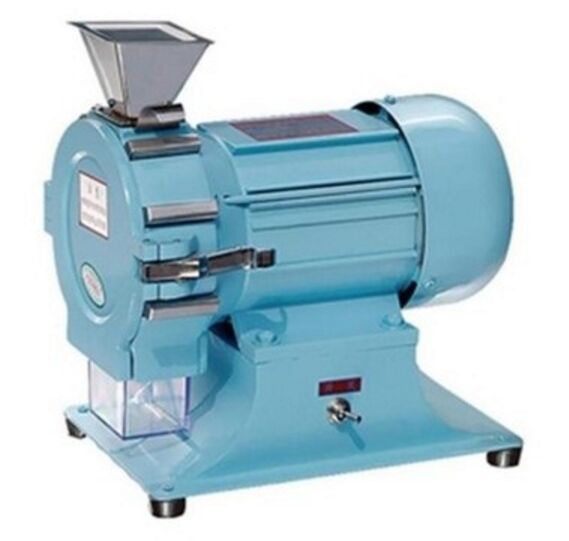

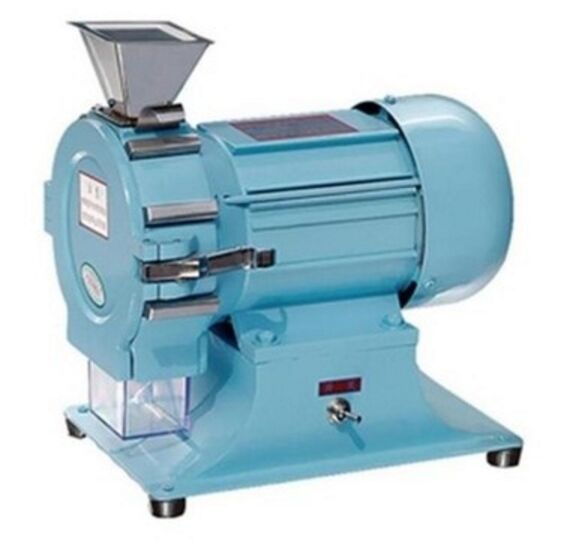

Micro Soil grinding machine, Laboratory Soil grinder

Model: FS-102

Description

This grinding machine is used to grind different type of soil to prepare soil sample in lab. It features light-in-weight, compact structure, high efficiency, reliable and stable performance. It’s kind of very common soil lab instruments.

Technical specifications

1. Power supply: 220V±10%, AC, 3Phase,50Hz

2. Capacity: 180W

2. Rotation rate: 1400rpm

3. Inner dia. Of grinding cell: 102mm

4. Aperture size of sieves: 0.5, 1.0, 1.5mm

5. Grinded fineness: 30-200 mesh

6. Overall size: 290*190*300mm (L*W*H)

7. Net Weight: 18kg

Grinding efficiency

Type Water content Rated Fineness
Cohesive soil <4% >95%
Sandy soil <6% Over 96.7% grain diameter <0.5mm



Features:

The tool bit gap can be adjusted according to the required fineness.
