Applications

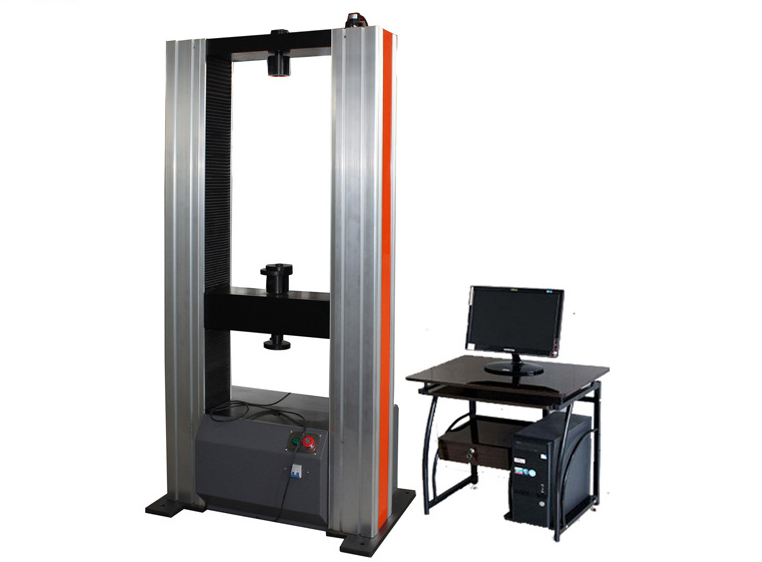

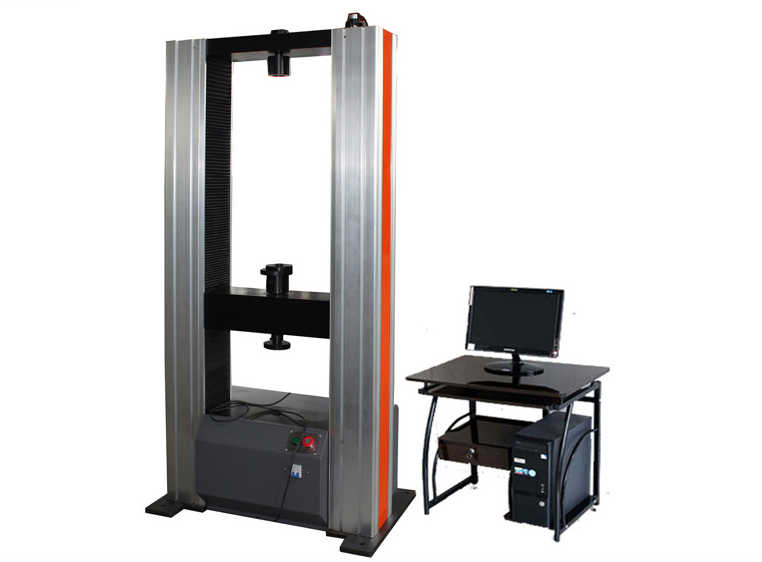

This testing machine is specially used for testing the mechanical strength of various kinds of man-made boards. Provided with suitable fixtures and jigs, it can be used for strength testing of tensile, compression, bending, split, internal-bonding, screw anchoring, elastic modulus, static bending.



Features

1) Special data processing software, human-machine dialogue is intuitive and convenient;

2) Real-time display of test curves and parameters;

3) Automatically obtain tensile strength, shear strength, static bending strength, elastic modulus, surface bonding strength, internal bonding strength, and other mechanical properties test results.

4) The limit position of the displacement can be set up, and when the operation reaches the limit, the protection stops;

5) With automatic reset and automatic return function;

6) Stepless speed regulation in the range of test speed 0.01～500mm/min:

7) Multiple sensors can be calibrated to meet the test of materials with different loads, so that one machine can be used for multiple purposes.



Specifications

Model	ETM-BC10	ETM-BC20	ETM-BC50	ETM-BC100
Maximum  test force	10KN	20KN	50KN	100kN
Functions	Shearing, bonding	Compression, shearing	Screw-anchoring	Bending, tensile
Measuring range	2％～100％F.S（ 0.4%-100% optional）
Test force accuracy	±1％（±0.5% optional）
Test speed	0.01-500mm/min, stepless adjustable
Speed accuracy	±1％
Stretch space	600mm(maximum 1200mm optional)
Dimensions mm	660×420 x1700	660 x420 x1700	840 x600 x1850	840 x600 x1850
Weight	500kg	500kg	650kg	750kg
