Low strain Pile integrity tester



Standards: JTG/T F81-01-2004

Model: PIT-810E

Description

This low strain pile integrity testers uses reflection wave method to detect the integrity of pile foundation to determine the extent and location of pile defects. It can be used to test pours and piles. It can also be used to test structures exposed on the top (such as piers, etc.). It’s equipped with GPS, 4G internal storage, IP65 protection degree.



Configurations

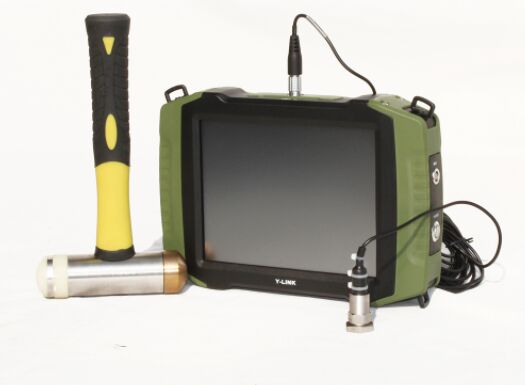

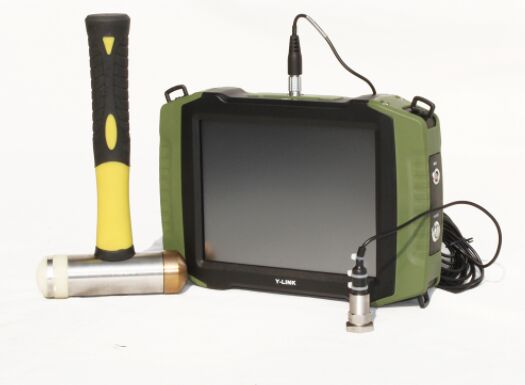

Main machine

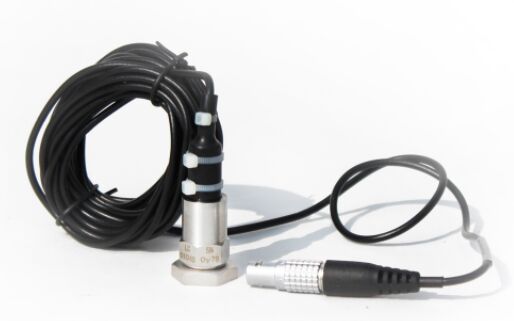

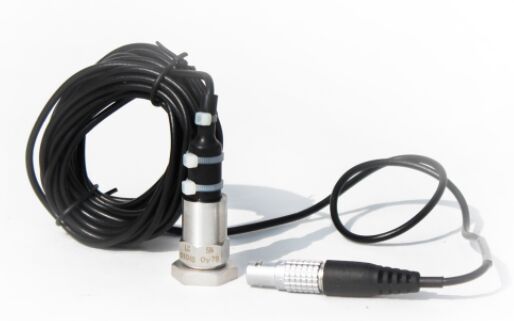

Acceleration transducer

Hammer

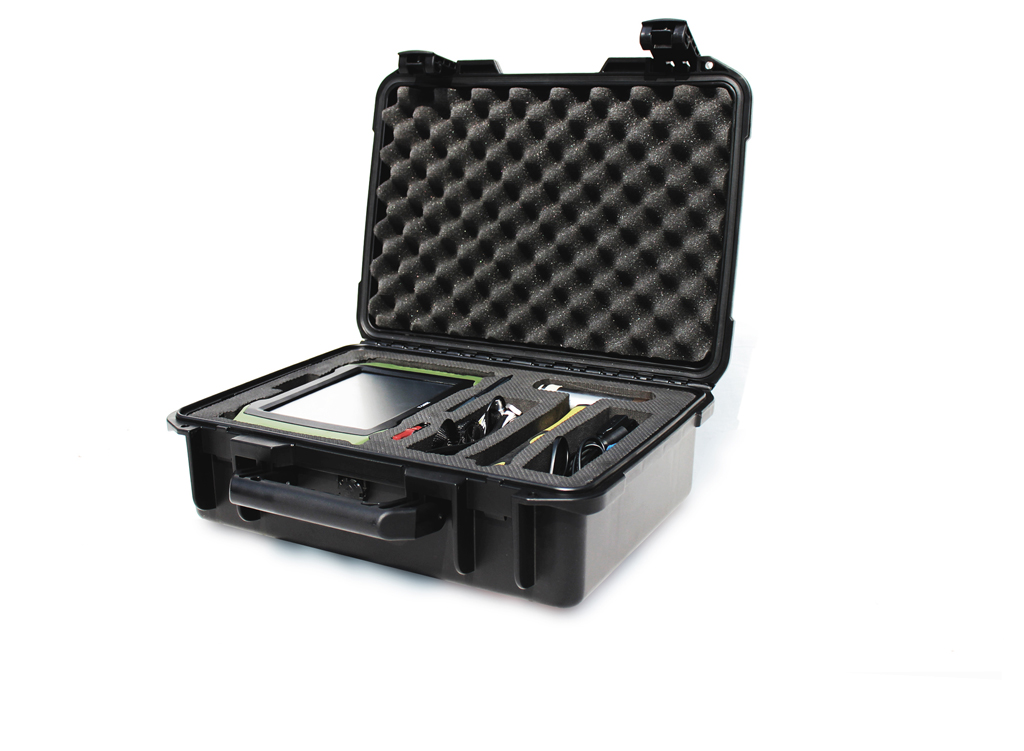

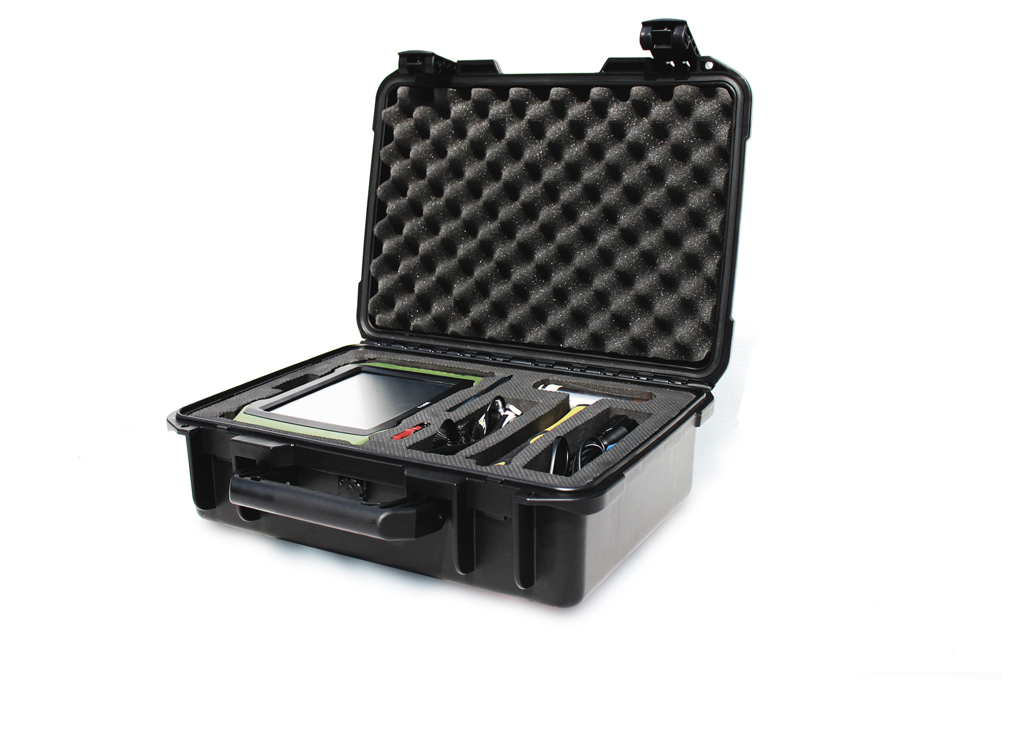

Carrying case



Technical specifications

Control unit Low power embedded industrial processor
Display 8.4  “ TFT LCD (resolution:800x 600)
Storage capacity 8G
Power mode Rechargeable lithium battery≥8 hours
Operation Mode Touch screen
Data transfer mode USB2.0
Sampling interval 5μs ~ 200μs
Record size 1024 points
Sampling resolution 24-bit A/D
Signal bandwidth 5Hz~12kHz
System noise ＜20μv
Dynamic range ≥100dB
Channel 1
Sensor Piezoelectric accelerometer/Speedometer
Operation temperature -20℃ ～ +55℃
Dimension 266 x 180 x 50 mm
Weight About 1.9 kg
