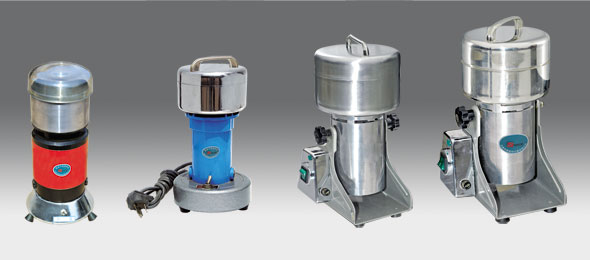

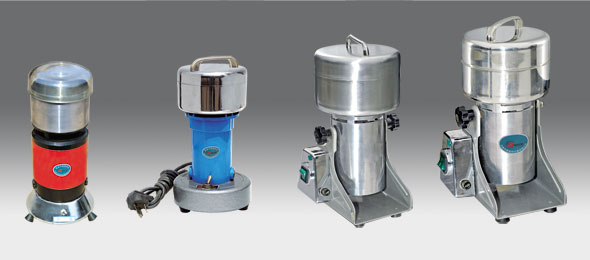

High-speed universal grinder

This series grinder can be used for grinding of grain, soil, medicine, ore minerals in laboratory.

Features

  • High-speed motor and stainless steel crushing head provides fast crushing.
  • Stainless steel crushing chamber prevents pollution.
  • Quick disassembly for easy cleaning.



Specifications

      Model  FS-80   FS-100  FS-135  FS-177
 Crushing way  high speed collision
Working mode  Continuous
Enclosure made  Cold-rolled steel sheet with chemical-resistant coating on the surface
Crushing chamber  SUS single stretch
Crushing knife  Alloy steel
Crushing chamber cover  Resin  SUS
Crushing chamber dia.（mm）  φ80  φ100  φ135  φ177
Batch input cap.  50  100  200  400
Motor rotation rate（rpm）  10000  24000
Finished fineness  60～200
Rated power（kw）  0.2  0.46  0.8  1.2
Overall size（W*D* Hmm）  φ130*280  φ140*290  200*220*330  200*240*430
Package size（W*D* Hmm）  300*160*180  325*180*190  250*250*400  250*250*430
Power supply  AC220V/0.9A  AC220V/2.1A  AC220V/3.6A  AC220V/5.5A
Net weight  4/4.5  3/3.5  6.5/7  9.5/10
Included accessories: brushes, fuses, wrenches, breakers
