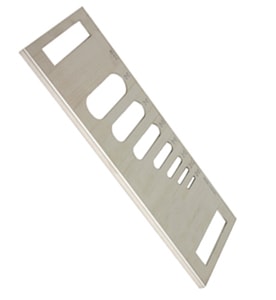

Flakiness Thickness Gauge



Standard: BS 812-105.1

The flakiness thickness gauge is used to determine if the aggregate particles are to be considered as flaky. The aggregate to be classified is separated into seven sieve fractions from 6.3 to 63 mm. the gauge is made from 1.5mm thickness metal sheet.



Specifications

Slot sizes: 4.9 x 30 mm, 7.2 x 40 mm, 10.2 x 50 mm, 14.4 x 60 mm, 19.7 x 80 mm, 26.3 x 90 mm and 33.9 x 100 mm.

Dimensions: 310x130x10 mm

Thickness: 1.5mm

Weight: approx 0.6 kg
