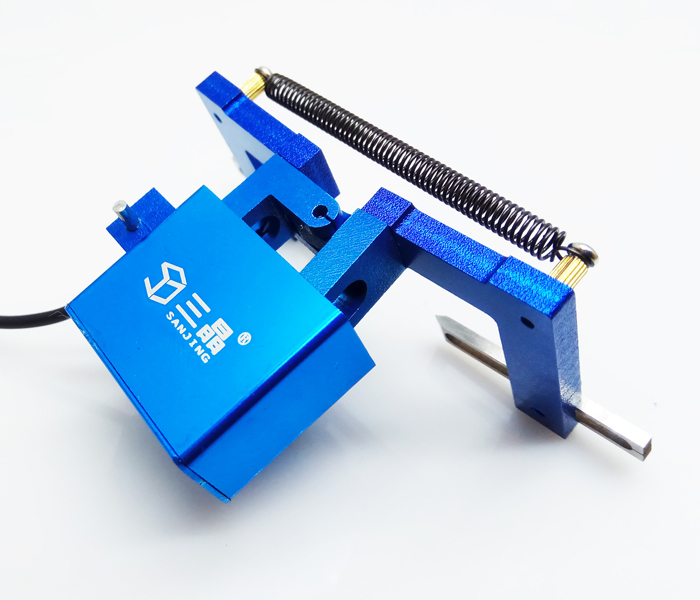

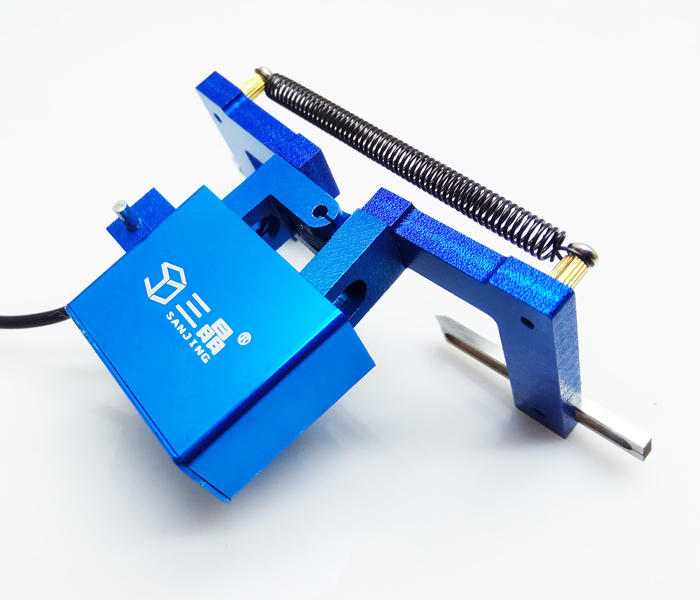

Electronic Radial Extensometer 50mm/3mm

Model: YJ

The Radial extensometer is used for transverse or radial deformation parameters test, such as  Poisson ratio μ, plastic strain ratio r, KIC, COD and so on.

Specifications

Scale distance 5-50mm
Maximum deflection 3mm
Strain gage resistance 350Ω
Bridge voltage ≤5V (direct current or alternating current)
Output sensitivity about 4.5 mV/V
Output interface USB(select by request)
Clamping method spring clamping
