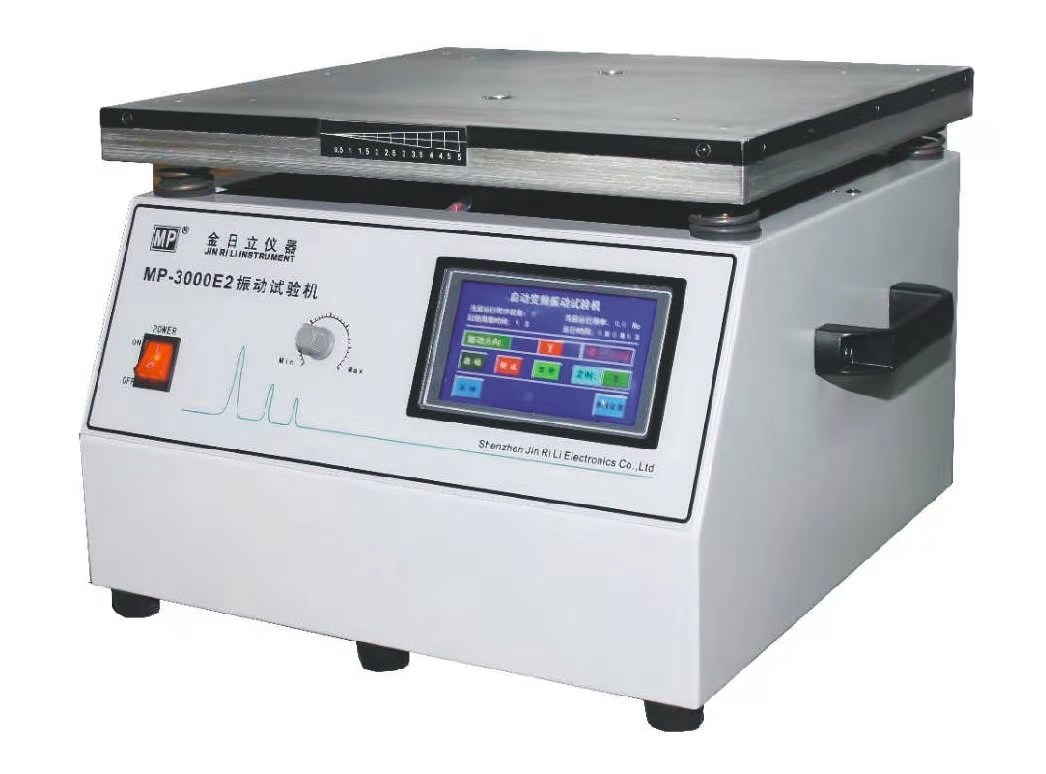

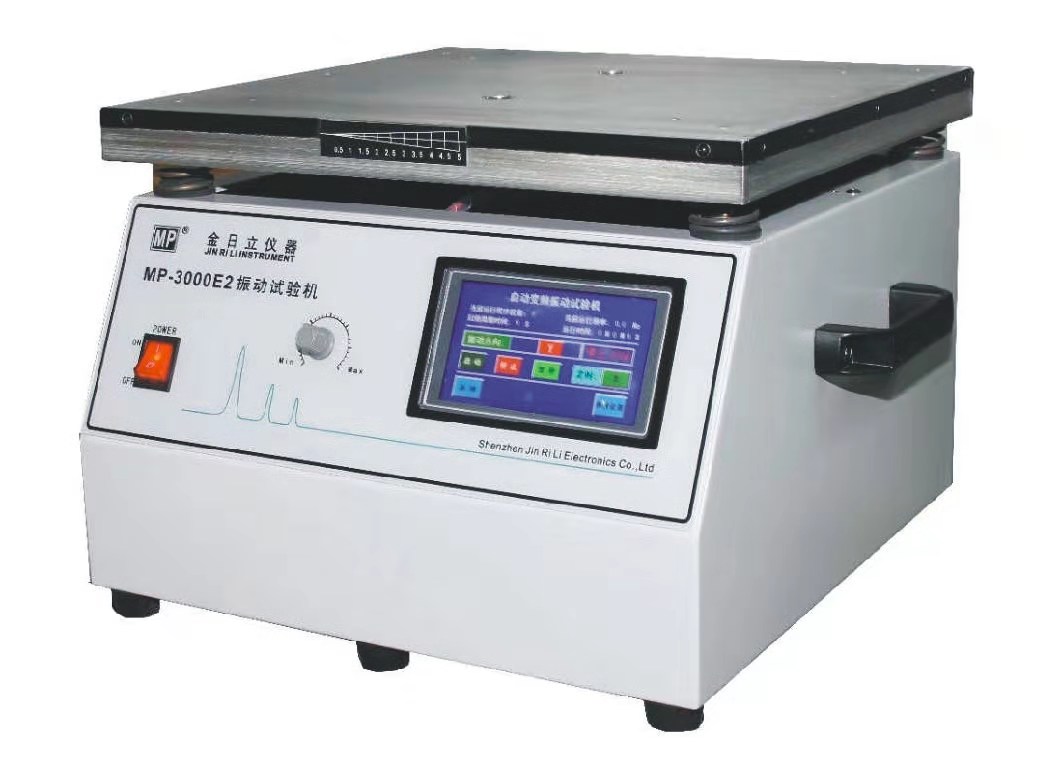

Model: MP-3000E2

It’s the upgraded version of MP-3000A model, vibration frequency stepless adjustable.

Technical specifications

1. Rated maximum test load weight: 30kg
2. Vibration frequency: 0-400Hz
3. No-load vibration amplitude: 0-4mmPP; (Note: vibration amplitude – change due to frequency and weight changes, no-load amplitude can not be greater than ± 2mm, maximum acceleration need to be calculated)
4. Vibration direction: vertical / (Y)
5. Power: 1.2kW
6. Work surface size L.W.H.: 395 × 365 × 40 (mm)
Operating environment: 0-40 ° C
