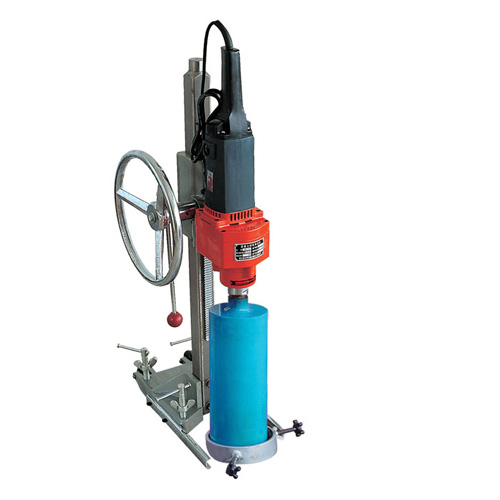

Electric Core drilling machine



Model: HZ-15

Description

This electric core drilling machine is used for concrete sampling for test and core drill in construction, road, airport engineering.

Technical specifications

Max drilling diameter: Φ150mm

Max drilling depth: 400mm

Feeding manner: manual

Master shaft rotation speed: 500~1000r/min

Drill bit material: man-made diamond thin-wall bit

Equipped motor: 1P series excited motor

Power: 2.2KW-2.5KW

Power supply: AC 220V, 50HZ, 1P

Overall size: 470×235×880mm

Drilling bit dia.: φ50, φ100, φ150
