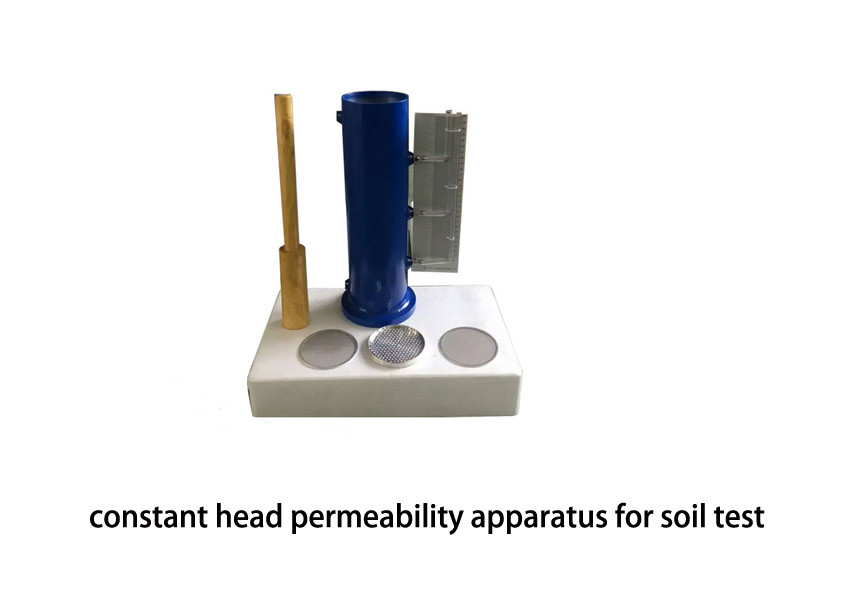

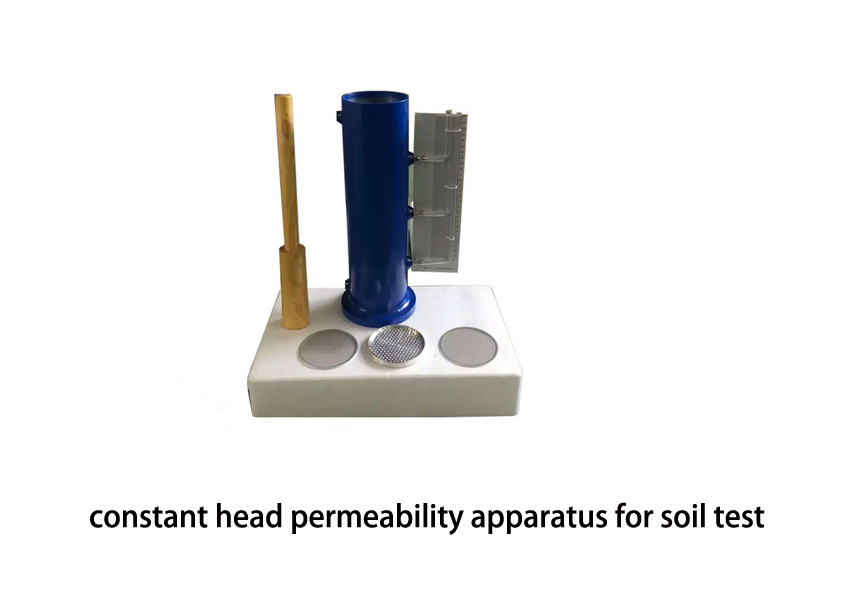

Constant head permeameter

Model: TST-70

Description

The constant head permeability apparatus is particularly suitable for relatively coarse grained soil such as sands and gravel.

The soil permeability is a very important factor to study the behavior of soil in its natural condition with respect to water flow.

Technical specifications

Permeability  cell size: Φ100 x Φ400mm

Pressure tube interval:  100mm±0.44mm

Manometer internal dia.: 6mm

Size: 215 x 145 x 400mm (L x W x H)

Weight:  4Kg
