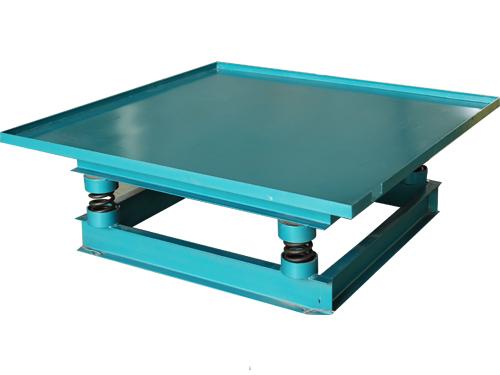

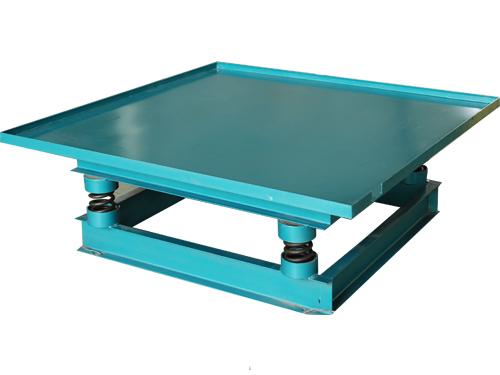

Concrete Vibrating Table

Model: HZT-1

Description

The vibrating table machine is used to form concrete specimens in lab, it’s comprised of base support, vibrator, four springs, the table and base are made of steel plate and structural steel, the vibration table is driven by motor through a couple of eccentric gear, they are installed in the center of the riverside of the table. It’s kind of very common concrete testing instrument.

Technical specification

Table size 500×500, 800×800, 1000×1000mm
Vibration frequency (50±3)Hz
Vibration amplitude 0.3-0.6mm
Max vibration load 250kg
Vibration force 5000-9000N
Vibrator power 0.55/ 1.1 /1.5 KW
Aggregate size <40mm
Specimen height <200mm
Power supply 3ph, AC 380V/50Hz
Overall size 1000*1000*420mm
Machine weight 65/140/240 kg
