Model: HNJ-CR

This equipment has two working mode, while under Potential measure mode, it can test the rebar corrosion potential in concrete structure, can monitor either small or large scale and in any direction; under resistivity measure mode, can test the resistivity of concrete thus to evaluate the corrosion risk of concrete structure.

Features

Two rebar corrosion potential measure way, direct and gradient mode, suitable for different test field;

Large touch screen operation

Directly display of the corrosion potential color tone map, corrosion degree can be directly be evaluated;

Micro printer available



Technical specifications

Measure range: 0~2000 kΩcm,±1000mv

Readout: 0.1 kΩcm,1mv

Data storage cap.: 128 groups each

PC communication baud rate: 115200

LCD size: 640*480

Overall size: 160*115*50(mm)

Main machine size: 1.5kg

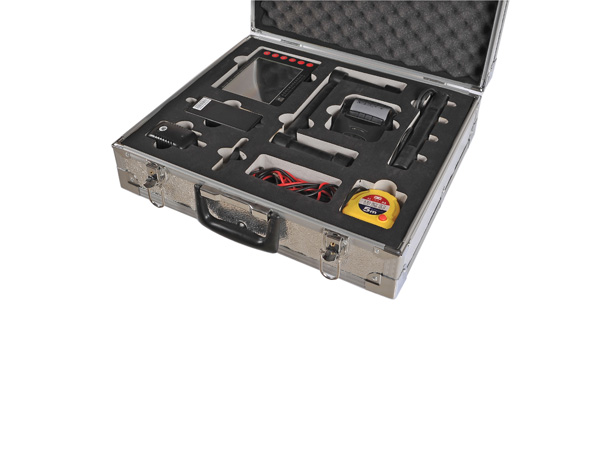

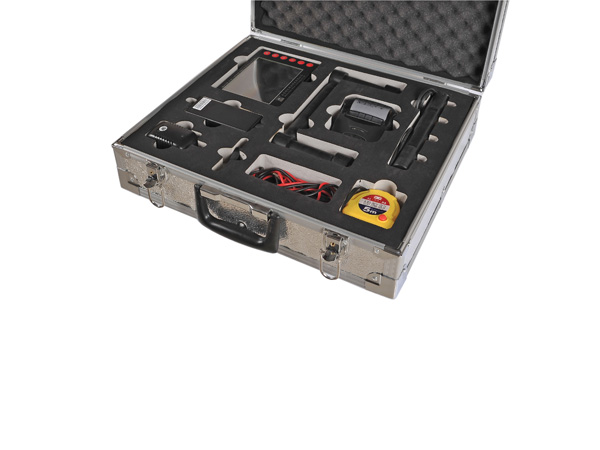

Accessories list

Wenner sensor, saturated copper sulfate probe

Resistivity standard module

AC adapter

Superconducting sponge plug

Connecting cable, connecting cable

Micro printer and charger
