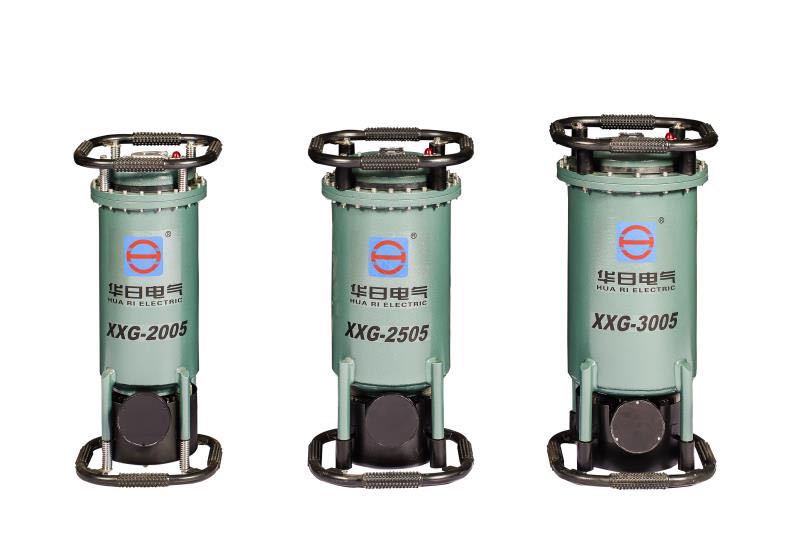

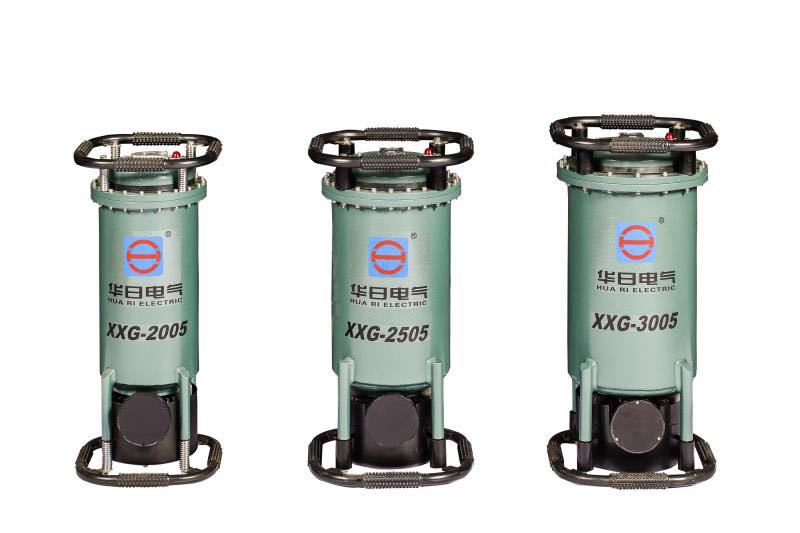

Ceramic tube Directional Portable X Ray flaw detector



Description

The X Ray flaw detector uses the penetration and attenuation characteristics of X ray thus to detect the flaw of different objects, it can detect metal and nonmetal materials, it mainly detects the volume defects such as stomata, slag, Incomplete welding etc. The X ray flaw detector is comprised of X Ray generator and controller, it’s easy and safe in operation.

Technical specifications

Specs. XXG-160 XXG-200 XXG-250 XXG-300
Voltage regulating range(kv) 70-160 120-200 150-250 170-300
Tube current(ma) 5 5 5 5
Focus size(mm)IEC336(normal) 1.5×1.5 2.0×2.0 2.0×2.0 2.5×2.5
Focus size(mm) IEC336(imported tube) 1.5×1.5 2.0×2.0 2.0×2.0 2.5×2.5
Work mode 1:1 1:1 1:1 1:1
Input power  (kva) ≥2.0 ≥2.5 ≥3.6 ≥3.6
Radiation angle(normal) 40 40 40 40
Radiation angle

(high quality type)

 40 40 40 40
Cooling way forced air cooling forced air cooling forced air cooling forced air cooling
Insulation gas SF6
Insulation gas work pressure(Mpa) 0.35~0.45
Penetration thickness(mm) 19 29 39 50
Generator size(mm) 200×200×650 285×285×620 330×330×640 330×330×700
Generator weight(kg) 18 21 31 38
Controller weight(kg) 12 12 12 12
Specs. XXG-350 XXG-250A XXG-300A XXGH-250
Voltage regulating range(kv) 170-350 150-250 170-300 150-250
Tube current(ma) 5 5 5 5
Focus size(mm)IEC336(normal) ———— 2.0×2.0 2.5×2.5 1×2.0
Focus size(mm) IEC336(imported tube) 2.5×2.5 2.0×2.0 2.5×2.5 ————
Work mode 1:1 1:1 1:1 1:1
Input power  (kva) ≥3.6 ≥3.6 ≥3.6 ≥3.6
Radiation angle(normal) ———— 40 40 25×360
Radiation angle

(high quality type)

 40 40 40 ————
Cooling way forced air cooling forced air cooling forced air cooling forced air cooling
Insulation gas SF6
Insulation gas work pressure(Mpa) 0.35~0.45
Penetration thickness(mm) 65 39 50 37
Generator size(mm) 330×330×700 285×285×650 285×285×685 330×330×680
Generator weight(kg) 38 23 32 31
Controller weight(kg) 12 12 12 12
