Civil engineering & Material Testing equipments

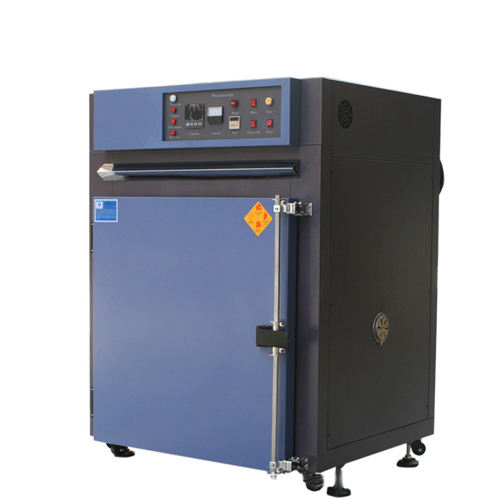

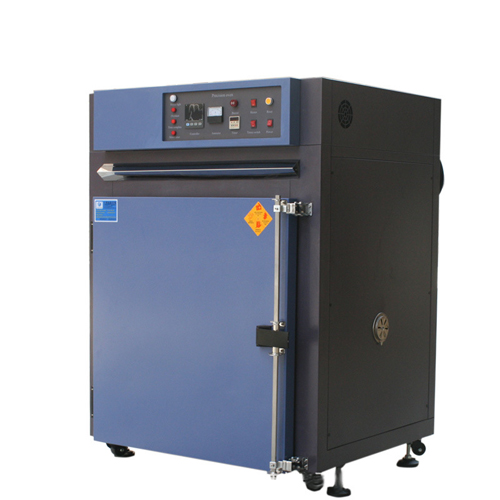

CE certificated oven

Specifications

Model DHGP-072 DHGP-270 DHGP-480 DHGP-600 DHGP-720 DHGP-1000
Internal chamber size (cm)  W×H×D 40×45×40 60×90×50 80×100×60 100×100×60 100×120×60 100×100×100
Overall size (cm) W×H×D 72×116×56 93×163×67 110×172×77 130×172×77 116×170×116 116×150×166
Temperature range RT+25℃～200℃（300℃）
Temperature fluctuation ±0.3℃
Temperature uniformity ±1%℃
Temperature readout 0.1℃
Temperature rise duration  30min
Enclosure material  Cold rolled plate + baking paint
Liner material #201 Stainless steel (when >200℃ # 304 SUS stainless steel used)
Insulation material Glass wool
Circulation system  Centrifugal fan air circulation system
Heat system SUS# High speed heater
Control system  keypress digital controller
Accessories Control status indicator, compartment shelf (2, height adjustable)
Safety device Phase sequence protection, over temperature, over current, overload
Power supply AC  1Ψ 220V  60/50Hz, AC 3Ψ 380V  60/50Hz
Customized Yes
