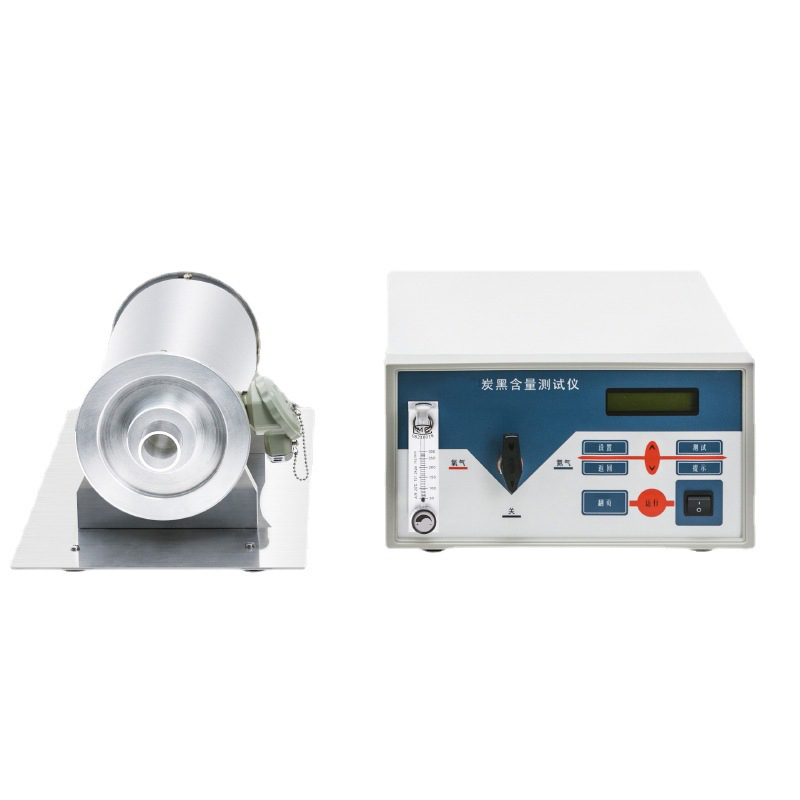

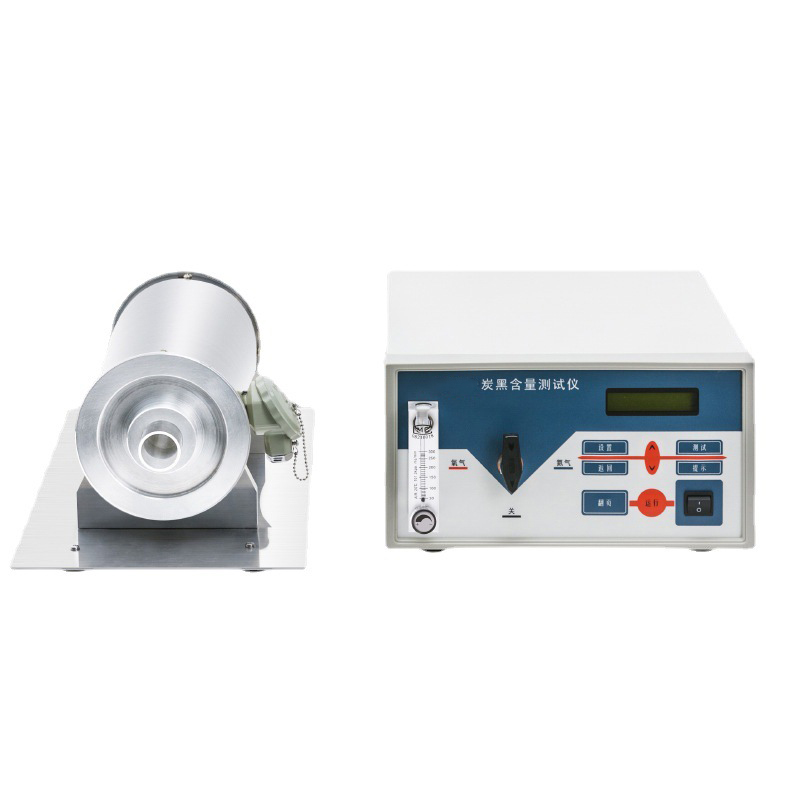

Model: TH3500

Standards:

ISO 6964, GB/T 13021, IEC 60811-4-1, GB/T 2951.41, JTG E50 T1165,

ASTM D1603-2012, CJ/T 125-2000, GB/T2951.41-2008 and other standards (not limited to the above standards)



Features

Easy using, accurate measurement, and automatic temperature control.

The parameter settings can be segmented and set according to needs

The furnace body is separated from the main engine for fast heat dissipation.

Automatic temperature control, convenient to use, simple to operate, reliable to work, and accurate measurement.

Technical specifications

1. Display mode: LCD screen
2. Furnace size: Φ31 × 350 ± 5mm
3. Quartz tube size: Φ 35 * 400 mm
4. Heating element: High temperature alloy wire
5. Heating zone length: 200mm
6. Length of constant temperature zone: 150mm
7. Working temperature: Room temperature~1100 ℃
8. Temperature control method: Intelligent programmable control
9. Working power supply: AC220V/50Hz/60Hz
10. Sensor sensitivity: 0.1 ℃
11. Gas path control: Two paths
