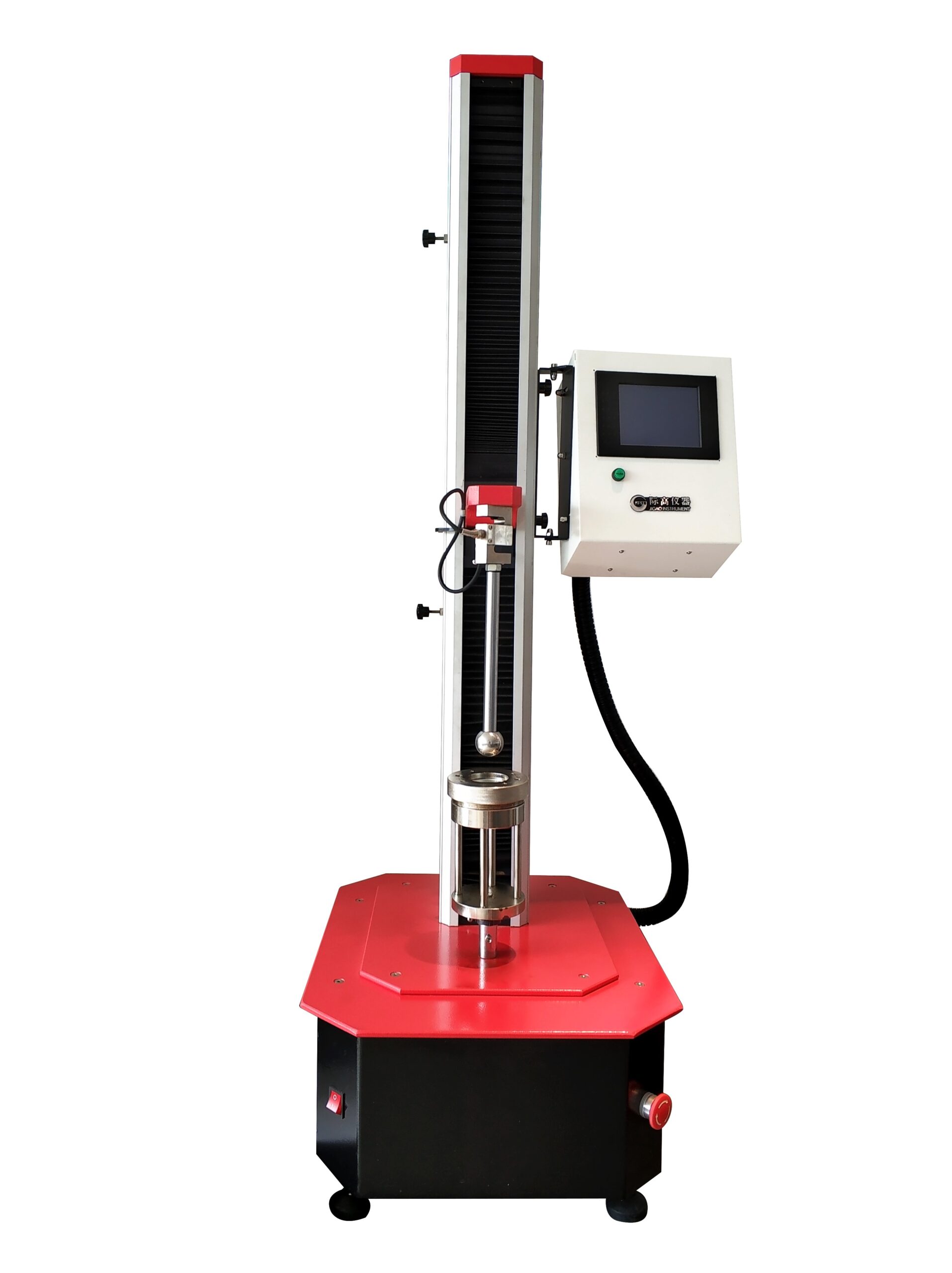

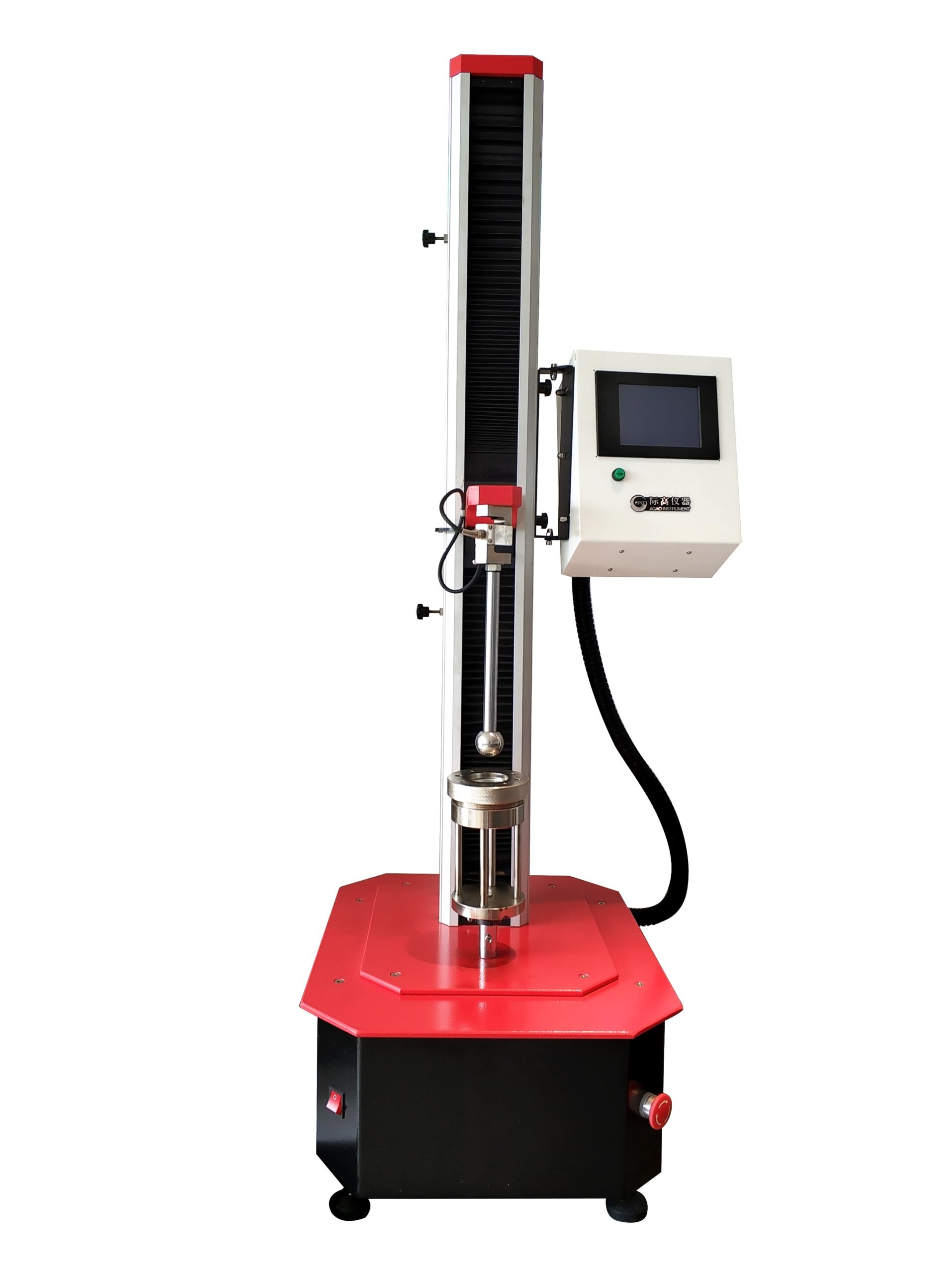

Model: FZ-031W

Standards

GB/T19976-2005 steel ball Φ25mm, Φ38mm

EN 12332-1, 1998 steel ball Φ38mm

FZ/T01030-93, steel ball Φ20mm

GB/T8878-2002 steel ball Φ20mm

ASTM D3787-2001 steel ball Φ25.4mm

ASTM D6797-2002 steel ball Φ25.4mm

It is suitable for ball bursting strength and expansion force testing of textiles and fabrics, as well as socks and gloves.

Constant rate elongation(CRE), stretch the sample under specified rate till it’s broken, record the break strength and elongation.



Features

5.7inch touch screen,

Chinese-English dual interface freely switch, dynamic display of test curve, diagram, data

Advanced DSP technology, 32 bit full digit control and 2500f/s high speed data acquisition

Precise preload ball screw rod, no backlash, high positioning accuracy

0.5% accuracy load cell

Full aluminum alloy made of main body, sandblasting and anodizing process on surface

Non-clutch type driving apparatus, can running under max load

Complies to the 2006/42/EC, 2006/95/EC, EMC 20044/108/EC”and GOST-R



Specifications

Structure type: single beam

Measure range: 1-3000n

Effective range: 1000mm(exclude grips)

Load measure range:(2%-100%) F.S

Load measure accuracy: +0.02% F.S

Beam move speed:  1-500mm/min stepless speed regulation, ±2%

Overall size: 500×400×1400

Grip: bursting test grip 1set (others can be tailor made)

Working power supply: 220VAC±10%

Net weight: 90kg
