Description

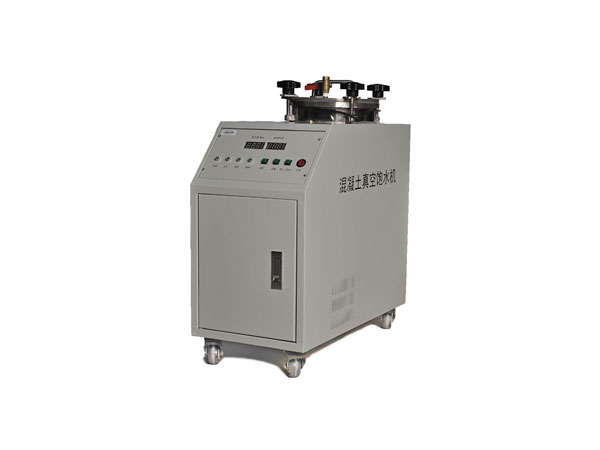

The automatic Vacuum saturation machine is mainly used for water saturation process of concrete specimen before durability test. Controlled by micro-processor, fully automatic control, easy operation. It’s widely used construction material laboratory.

Features

• Compact design, light in weight, universal wheel on bottom
• Precision pressure transmitter equipped with 2L oil pump, fast pumping, accurate result
• Water level sensor control pumping, digital display of vacuum value and time
• Microprocessor fully automatic control, stable running



Technical specifications

Vacuum volume: 10L

Power supply: AC 220.0V

Vacuum accuracy: ±0.001Mpa

Power supply: AC 220V

Controller voltage: DC 5V

Pressure transmitter working voltage: DC 24V

Main machine overall size: 750*680*400mm

Net weight: 32 kg

Operation procedure

Put the prepared specimen into the vacuum tank, ensure good sealing

Connect with power supply, turn on the power switch, adjust the vacuum limit

Ensure enough water supply

Pressure start key, the whole process will done automatically

After whole process just take out the specimen
