Model: MJ-GCV-02

Standards: GB/T213-2008, ISO 1928-2009

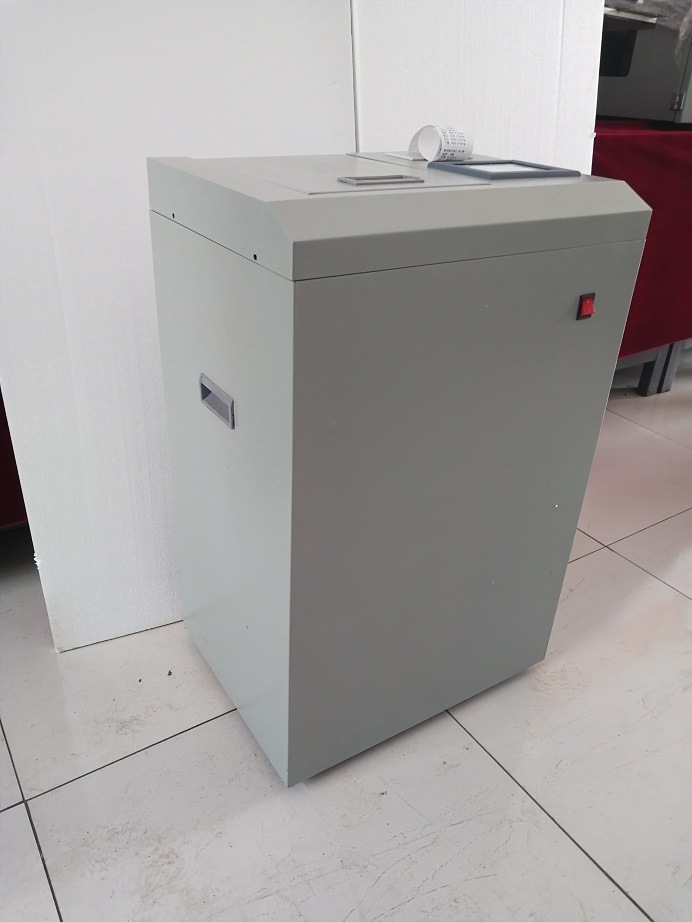

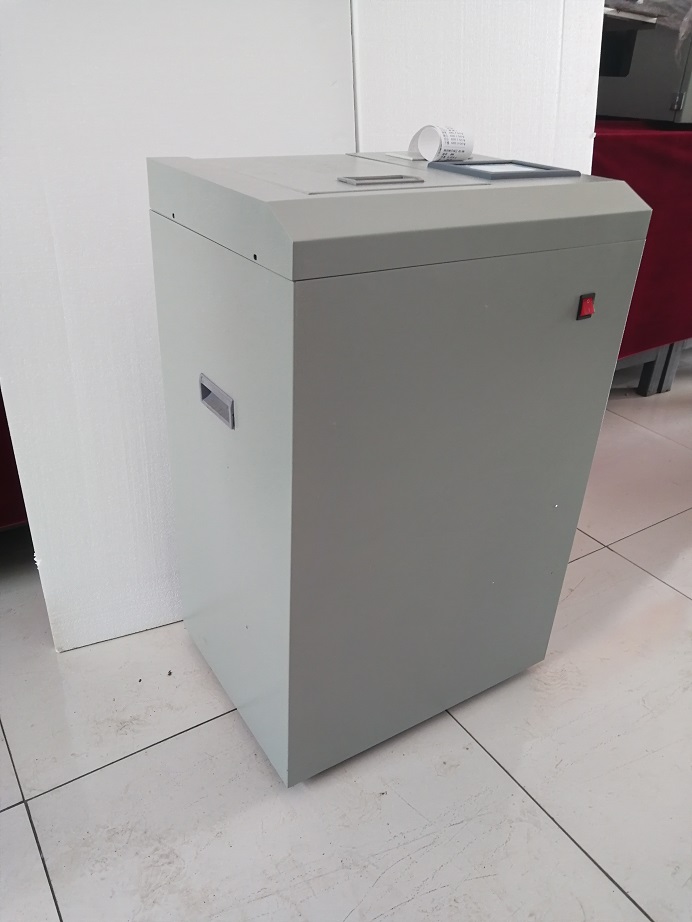

The calorimeter is mainly used to measure the gross calorific value of solid combustibles such as coal, coke, gangue, etc., so as to judge the quality of the coal and cokes. It is widely used in electric power, coal, metallurgy, petrochemical, quality inspection, environmental protection and other industries. It is a commonly used instrument in coal quality laboratory.



Features

Adopt advanced single-chip microcomputer system to control the instrument, realize automatic water filling and drainage, automatic water temperature adjustment, automatic quantitative water, automatic stirring, automatic ignition, calculation, calibration, and printing.

It has all the functions of an intelligent calorimeter, has the advantages of high test accuracy, stable performance, low failure rate, system constants and experimental results can be stored for a long time and will not be lost after shutdown, and has a very high cost performance.

Menu-style operation interface, under the Chinese large-screen LCD prompt, the user only needs to install the oxygen bomb to complete the entire experiment process. Intuitive, friendly, easy to learn and easy to use. Equipped with a serial printer, the experimental results are clear at a glance.

It can be equipped with a USB socket and windowsXP operating system according to user needs to realize computer control.



Specifications

Heat capacity	10500J/K
Resolution	0.0001℃
Test time	about 15min
The external water cylinder capacity	51L
The inner water cylinder capacity	2.3L
Ignition voltage	20V
Ignition time	6 minutes
The standard	GB/T213-2008, ISO 1928-2009
Calorific value test accuracy	better than 0.2% (benzoic acid)
Temperature measurement range	0℃-65℃
Power supply voltage	AC220V±10％50Hz
Work power	<300W
Temperature range	5℃-40℃
Quantitative accuracy	≤±0.1g
Measurement accurayc	Better than national standard
